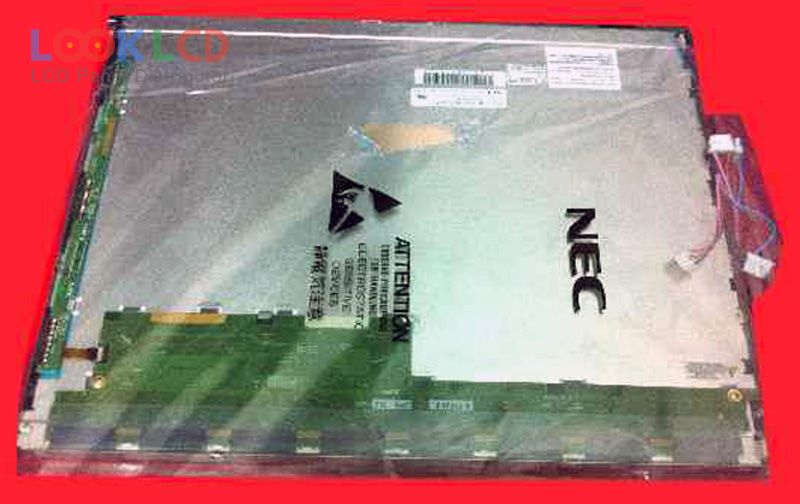

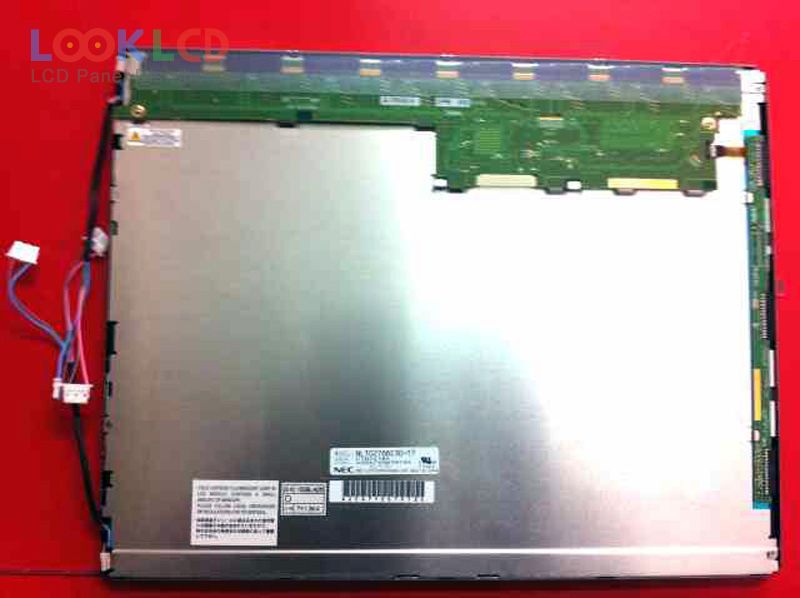

| Nambari ya Sehemu | NL10276BC30-17 |
| Chapa | NLT |
| Ukubwa | 15.0 |
| Maombi | IA |
| Azimio | 1024×768 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 700:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | NEC |
| mfano wa paneli | NL10276BC30-17 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 15.0 inch |
| azimio | 1024(RGB)×768 , XGA |
| hali ya kuonyesha | UA-SFT, Normally Black, Transmissive |
| eneo la kazi | 304.128×228.096 mm |
| muhtasari | 326.5×253.5×17 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 700:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193172% |
| wakati wa majibu | 14/11 (Typ.)(Tr/Td) |
| angle ya kutazama | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
| NL10276AC24-05 | NLT | 12.1 | 1024×768 |
| NL10276AC30-07 | NLT | 15.0 | 1024×768 |
| NL10276BC16-06 | NLT | 8.4 | 1024×768 |
| NL10276BC20-08 | NLT | 10.4 | 1024×768 |
| NL10276BC24-13 | NLT | 12.1 | 1024×768 |
| NL10276BC24-19D | NLT | 12.1 | 1024×768 |
| NL10276BC24-21 | NLT | 12.1 | 1024×768 |
| NL10276BC28-21A | NLT | 14.1 | 1024×768 |
| NL10276BC30-15 | NLT | 15.0 | 1024×768 |
| NL10276BC30-18C | NLT | 15.0 | 1024×768 |
| AM-1024600KTMQW-01H | AMPIRE | 7.0 | 1024×600 |
| G085VW01 V1 | AUO | 8.5 | 800×480 |
| LM-EH53-22NTK | SANYO | 10.4 | 640×480 |
| LM290WW2-SSA1 | LG Display | 29.0 | 2560×1080 |
| LM32C041 | SHARP | 5.5 | 320×240 |
| LTA057A340F | TOSHIBA | 5.7 | 320×240 |
| RGS27128064YW000 | RiTdisplay | 2.7 | 128×64 |
| UG-2864ASGPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864KLBMG01 | WiseChip | 1.54 | 128×64 |
| UG-9616TLBBG01 | WiseChip | 0.84 | 96×16 |
