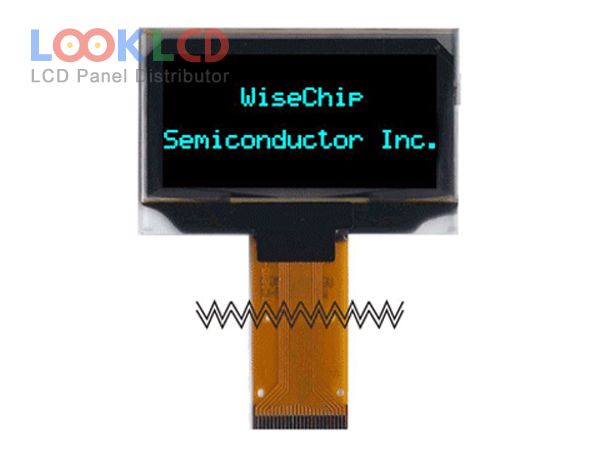

| Nambari ya Sehemu | UG-2864KLBMG01 |
| Chapa | WiseChip |
| Ukubwa | 1.54 |
| Maombi | IA |
| Azimio | 128×64 |
| Muundo | OLED |
| Mwangaza | 120 |
| CR | 10000:1 |
| Rangi | Mono(Blue) |
| Mwangaza nyuma | self |
| Kiolesura | CPU/SPI/I²C |
| chapa ya paneli | WiseChip |
| mfano wa paneli | UG-2864KLBMG01 |
| aina ya paneli | PM-OLED , OLED |
| saizi ya paneli | 1.54 inch |
| azimio | 128×64 |
| eneo la kazi | 35.052×17.516 mm |
| muhtasari | 42.04×27.22 mm |
| uso | |
| mwangaza | 120 cd/m² (Typ.) |
| uwiano wa utofautishaji | 10000 : 1 (Typ.) |
| kuonyesha rangi | Mono(Blue) |
| angle ya kutazama | |
| dereva ic | Built-in SSD1309 |
| kiolesura cha ishara | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| maombi | IA |
