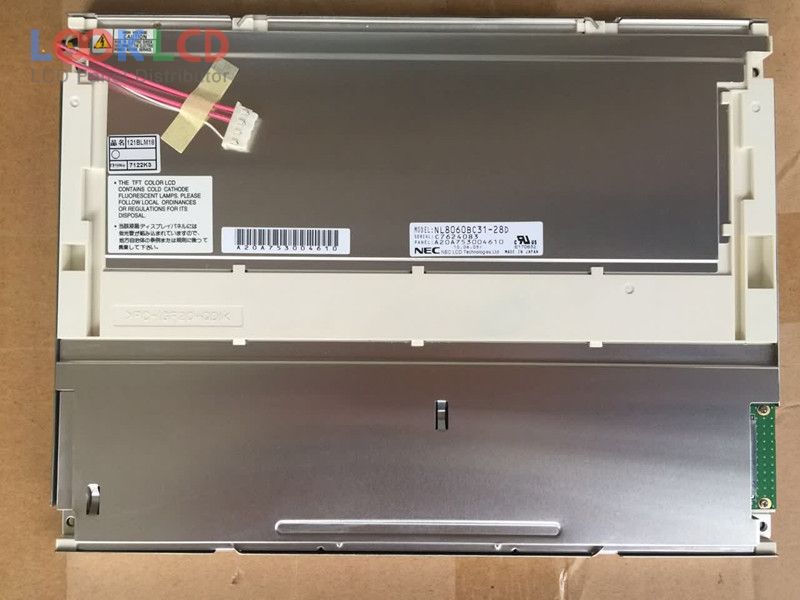

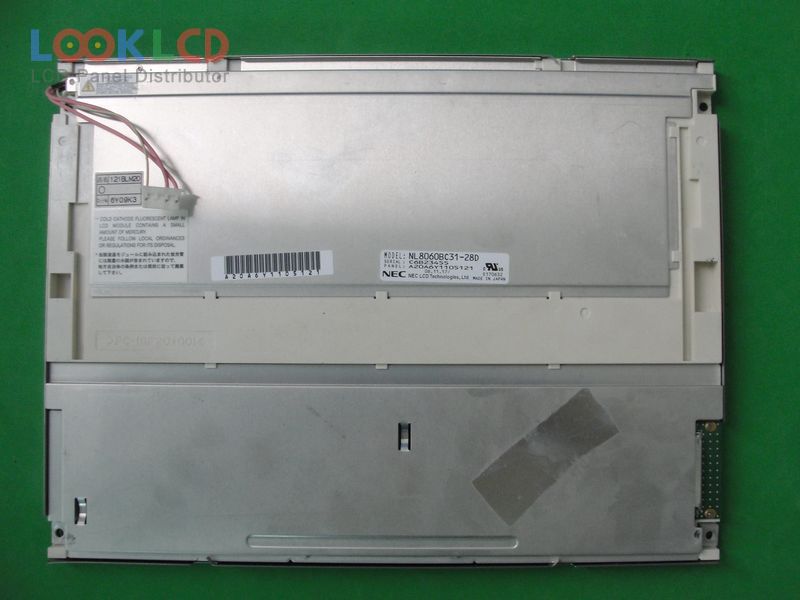

| Nambari ya Sehemu | NL8060BC31-28D |
| Chapa | NLT |
| Ukubwa | 12.1 |
| Maombi | IA |
| Azimio | 800×600 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | NEC |
| mfano wa paneli | NL8060BC31-28D |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 12.1 inch |
| azimio | 800(RGB)×600 , SVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 246×184.5 mm |
| muhtasari | 280×210×13.7 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193140% |
| wakati wa majibu | 8/25 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
