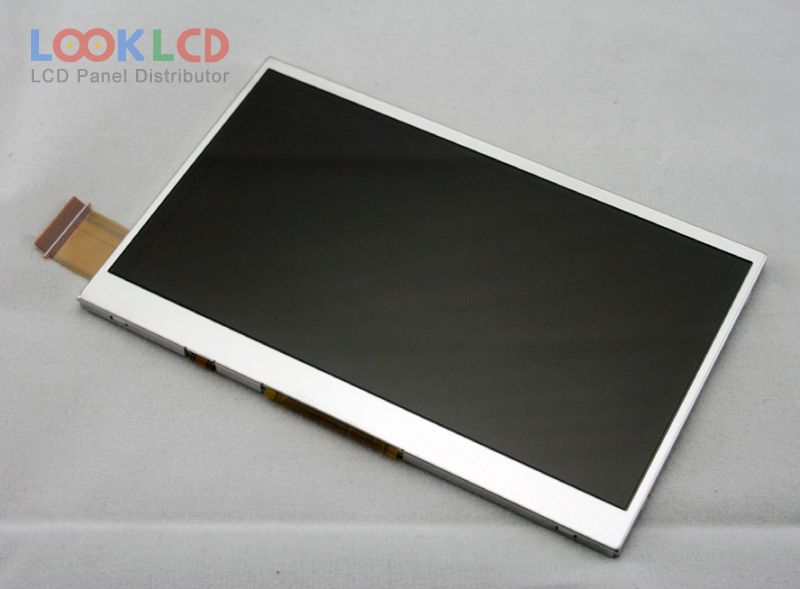

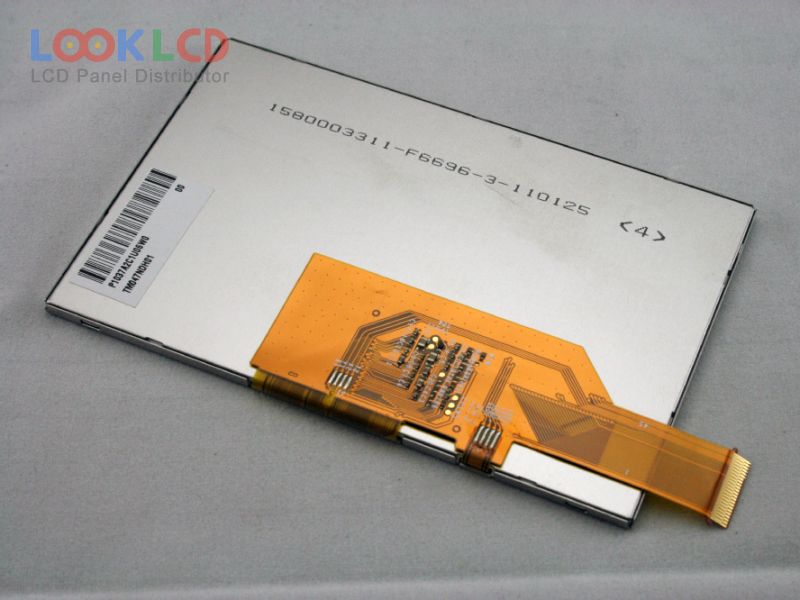

| Nambari ya Sehemu | TM047NDH01 |
| Chapa | Tianma |
| Ukubwa | 4.7 |
| Maombi | PND |
| Azimio | 480×272 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 400:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | TIANMA |
| mfano wa paneli | TM047NDH01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 4.7 inch |
| azimio | 480(RGB)×272 , WQVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 103.68×58.752 mm |
| muhtasari | 114.3×72.5 mm |
| uso | Clear, Hard coating (3H) |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193150% |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| angle ya kutazama | 65/65/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 5S1P+6S1PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit) + SPI, 45 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PND |
| 990000475 | TPO | 4.3 | 800×480 |
| 990000475P | TPO | 4.3 | 800×480 |
| A050FW03 V0 | AUO | 5.0 | 480×272 |
| AT050TN43 V.1 | Innolux | 5.0 | 800×480 |
| DLC0430LZG-T | Other | 4.3 | 480×272 |
| LMS480KC02 | Samsung | 4.8 | 800×480 |
| LMS500HF07 | Samsung | 5.0 | 480×272 |
| LQ043T1DH41 | SHARP | 4.3 | 480×272 |
| PA050XS1 | E Ink | 5.0 | 320×234 |
| TM047NBH01 | Tianma | 4.7 | 480×272 |
