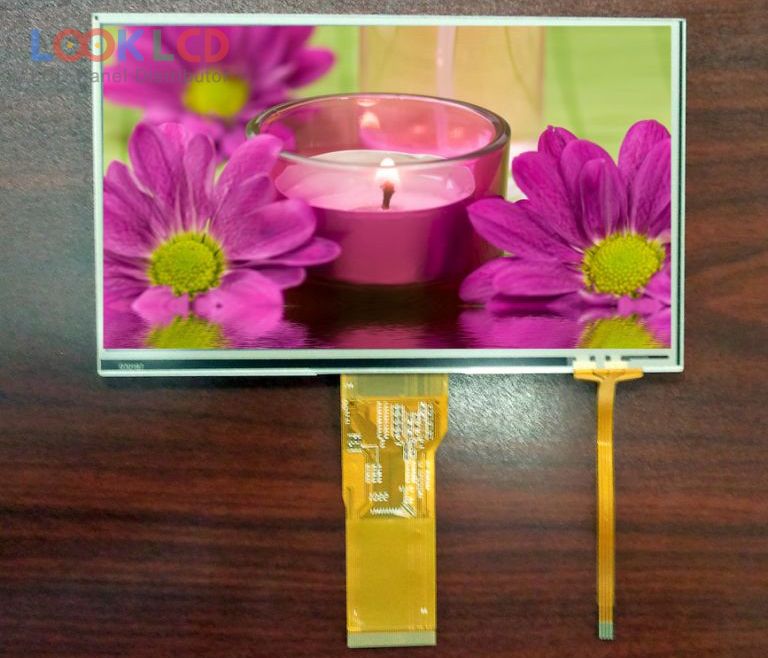

| Nambari ya Sehemu | TM070RBH10 |
| Chapa | Tianma |
| Ukubwa | 7.0 |
| Maombi | MP4 |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 280 |
| CR | 500:1 |
| Rangi | 262K/16.2M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | TIANMA |
| mfano wa paneli | TM070RBH10 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 154.08×85.92 mm |
| muhtasari | 164.9×100×7.1 mm |
| uso | Antiglare |
| mwangaza | 280 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193149% |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S8PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| voltage ya pembejeo | 3.3/10.6/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | MP4 |
