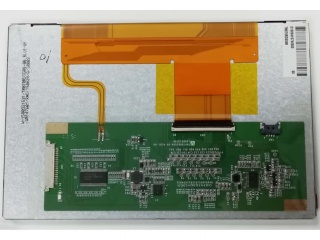

| Nambari ya Sehemu | TM070RDSG08 |
| Chapa | TIANMA |
| Ukubwa | 7.0 |
| Maombi | Industrial |
| Azimio | 800×480 |
| Muundo | LCM , a-Si TFT-LCD |
| Mwangaza | |
| CR | 500:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | 10S3P |
| Kiolesura | LVDS |
| mtengenezaji | TIANMA |
| ukubwa wa skrini | 7.0 inch |
| nambari ya pixel | 800(RGB)×480 (WVGA) 133PPI |
| eneo amilifu(mm) | 152.4 × 91.44 (H×V) |
| eneo la bezel(mm) | 155.4 × 94.44 (H×V) |
| mwangaza | 500 cd/m² (Typ.) |
| angle ya kutazama | 70/70/70/60 (Typ.)(CR≥10) |
| mtazamo mzuri | - |
| kina cha rangi | 262K/16.7M 70% NTSC |
| wingi | 176g (Typ.) |
| kiwango cha upya | 60Hz |
| aina ya ishara | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| usambazaji wa voltage | 3.3V (Typ.) |
| max. ukadiriaji | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| jina la mfano | TM070RDSG08 |
| aina ya skrini | LCM , a-Si TFT-LCD |
| mpangilio | RGB Vertical Stripe |
| muhtasari(mm) | 166.4 × 107.2 × 8.5 (H×V×D) |
| matibabu | Antiglare |
| uwiano wa utofautishaji | 500 : 1 (Typ.) (TM) |
| majibu | 25 (Typ.)(Tr+Td) ms |
| hali ya kazi | TN, Normally White, Transmissive |
| backlight | 10S3P WLED , 50K hours , With LED Driver |
| kutumika kwa | Industrial |
| skrini ya kugusa | Without |
