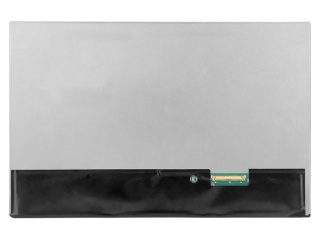

| Nambari ya Sehemu | TM101JDHG38 |
| Chapa | TIANMA |
| Ukubwa | 10.1 |
| Maombi | Industrial Medical I |
| Azimio | 1280×800 |
| Muundo | LCM, a-Si TFT-LCD |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | 6S5P |
| Kiolesura | LVDS |
| mtengenezaji | TIANMA |
| jina la mfano | TM101JDHG38 |
| ukubwa wa skrini | 10.1 inch |
| aina ya skrini | LCM, a-Si TFT-LCD |
| nambari ya pixel | 1280(RGB)×800 (WXGA) 149PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 216.96 × 135.6 (H×V) |
| muhtasari(mm) | 231.22 × 150.6 × 6.6 (H×V×D) |
| eneo la bezel(mm) | 219.96 × 138.6 (H×V) |
| matibabu | Hard coating |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800 : 1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| majibu | 25 (Typ.)(Tr+Td) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | SFT, Normally Black, Transmissive |
| kina cha rangi | 262K/16.7M 50% NTSC |
| backlight | 6S5P WLED , 30K hours , With LED Driver |
| wingi | 276g |
| kutumika kwa | Industrial Medical Imaging VOIP Phone |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| aina ya ishara | LVDS (1 ch, 6/8-bit) , Connector 40 pins |
| usambazaji wa voltage | 3.3V (Typ.) |
| max. ukadiriaji | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| DLC1010CIG-6 | Other | 10.1 | 1280×800 |
| G101STN01.3 | AUO | 10.1 | 1024×600 |
| LP101WH1-TLA2 | LG Display | 10.1 | 1366×768 |
| LTL101AL03-W01 | Samsung | 10.1 | 1280×800 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
| TM101DDHG03 | Tianma | 10.1 | 1024×600 |
| TM101JDHP01 | Tianma | 10.1 | 1280×800 |
| TV101QUM-N00 | BOE | 10.1 | 3840×2160 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
| VVX10F004B00 | Panasonic | 10.1 | 1920×1200 |
