| Nambari ya Sehemu | TV101WXM-NP1 |
| Chapa | BOE |
| Ukubwa | 10.1 |
| Maombi | PAD |
| Azimio | 1280×800 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | eDP |
| chapa ya paneli | BOE |
| mfano wa paneli | TV101WXM-NP1 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1280(RGB)×800 , WXGA |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| eneo la kazi | 216.96×135.6 mm |
| muhtasari | 228.3×149.05×4.4 mm |
| uso | Glare (Haze 0%), Hard coating |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193149% |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |

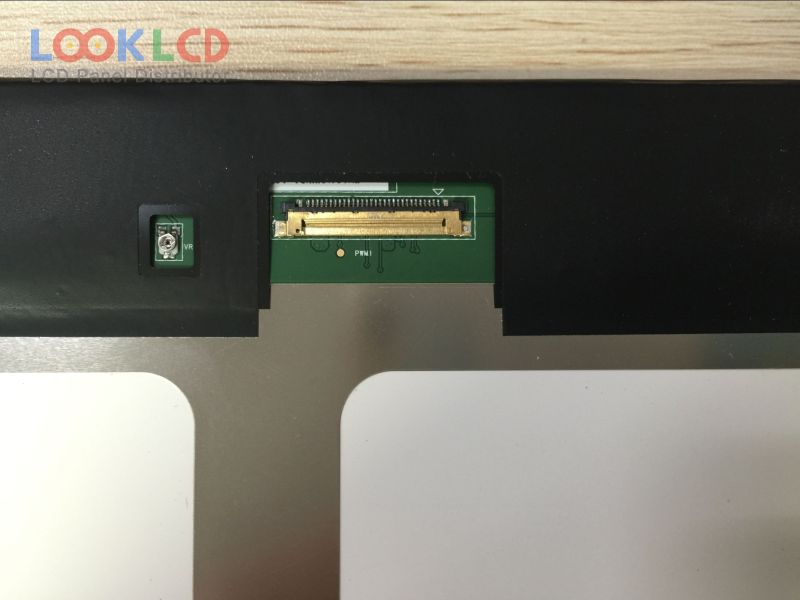

| kiolesura cha ishara | eDP (1 Lane), 30 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PAD |
