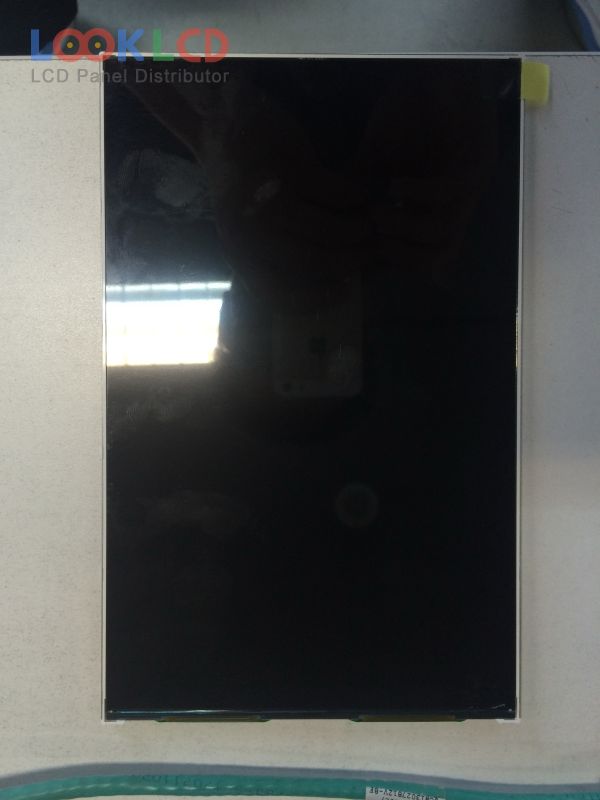

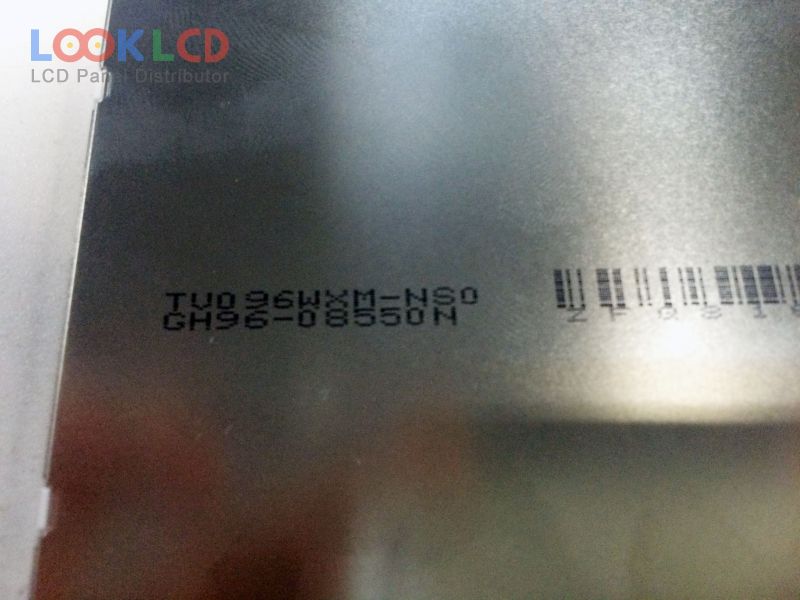

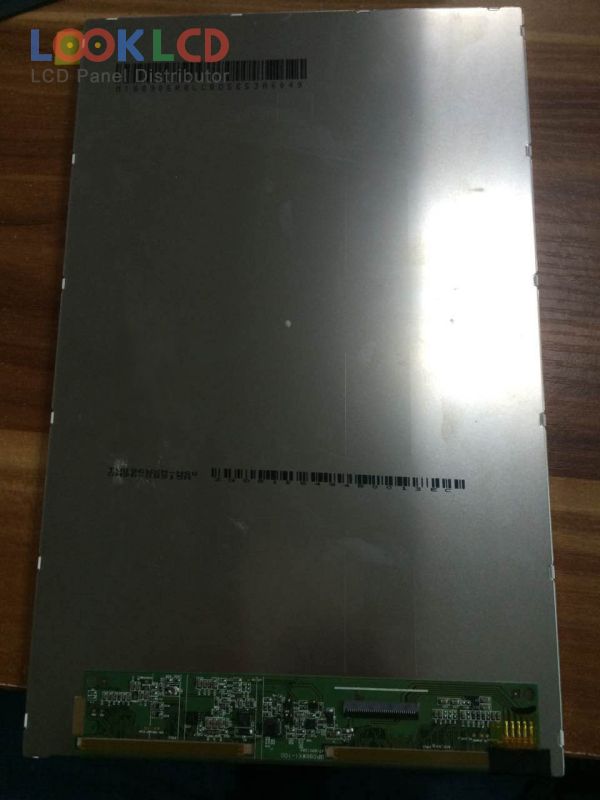

| Nambari ya Sehemu | TV096WXM-NS0 |
| Chapa | BOE |
| Ukubwa | 9.6 |
| Maombi | PAD |
| Azimio | 800×1280 |
| Muundo | LCM |
| Mwangaza | 450 |
| CR | 900:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | MIPI |
| chapa ya paneli | BOE |
| mfano wa paneli | TV096WXM-NS0 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 9.6 inch |
| azimio | 800(RGB)×1280 , WXGA |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| eneo la kazi | 129×206.4 mm |
| muhtasari | 136.7×217×4.65 mm |
| uso | Hard coating, Antireflection |
| mwangaza | 450 cd/m² (Typ.) |
| uwiano wa utofautishaji | 900:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193147% |
| wakati wa majibu | |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 7S4PWLEDWithout Driver |
| kiolesura cha ishara | MIPI (4 data lanes), 34 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PAD |
