| Nambari ya Sehemu | TX23D12VM0CAA |
| Chapa | KOE |
| Ukubwa | 9.0 |
| Maombi | IA |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 400:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |

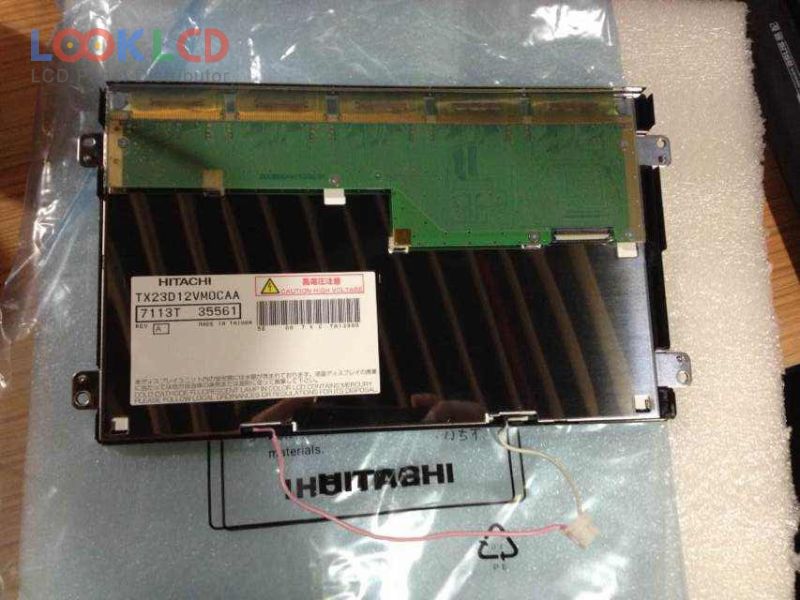

| chapa ya paneli | HITACHI |
| mfano wa paneli | TX23D12VM0CAA |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 9.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | IPS, Normally Black, Transmissive |
| eneo la kazi | 195×117 mm |
| muhtasari | 236×135 mm |
| uso | Antiglare |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193160% |
| wakati wa majibu | 13/17 (Typ.)(Tr/Td) |
| angle ya kutazama | 85/85/85/85 (Min.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | CMOS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.)(VDD) |
| maombi | IA |
