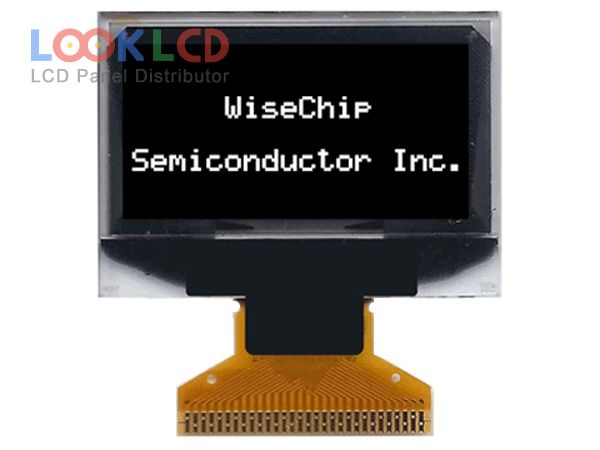

| Nambari ya Sehemu | UG-2864KSWLG01 |
| Chapa | WiseChip |
| Ukubwa | 1.3 |
| Maombi | IA |
| Azimio | 128×64 |
| Muundo | OLED |
| Mwangaza | 100 |
| CR | 10000:1 |
| Rangi | Mono(White) |
| Mwangaza nyuma | self |
| Kiolesura | CPU/SPI/I²C |
| chapa ya paneli | WiseChip |
| mfano wa paneli | UG-2864KSWLG01 |
| aina ya paneli | PM-OLED , OLED |
| saizi ya paneli | 1.3 inch |
| azimio | 128×64 |
| eneo la kazi | 29.42×14.7 mm |
| muhtasari | 34.5×23×1.55 mm |
| uso | |
| mwangaza | 100 cd/m² (Typ.) |
| uwiano wa utofautishaji | 10000 : 1 (Typ.) |
| kuonyesha rangi | Mono(White) |
| angle ya kutazama | |
| dereva ic | COG Built-in SSD1306 |
| kiolesura cha ishara | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| voltage ya pembejeo | 2.8/12.0V (Typ.)(VDD/VCC) |
| rohs: | |
| maombi | IA |
