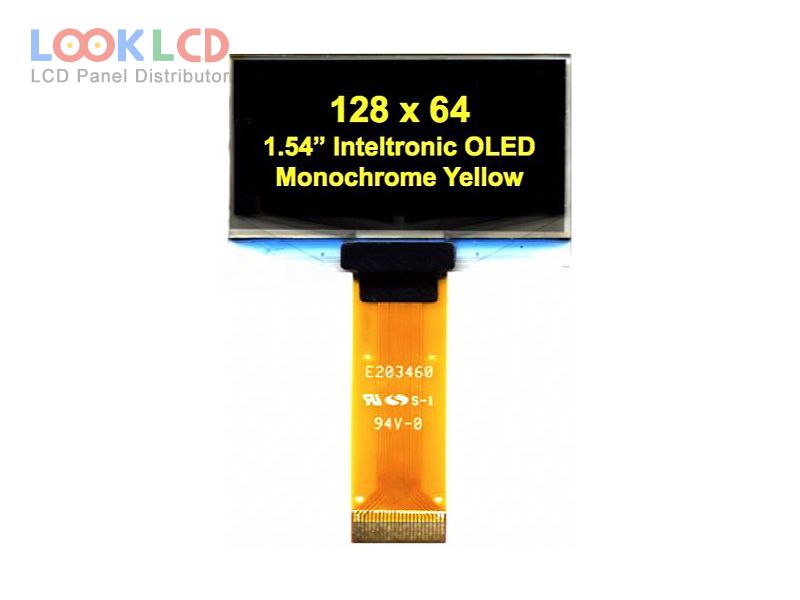

| Nambari ya Sehemu | UG-2864ASYCG01 |
| Chapa | WiseChip |
| Ukubwa | 1.54 |
| Maombi | IA |
| Azimio | 128×64 |
| Muundo | OLED |
| Mwangaza | 150 |
| CR | 10000:1 |
| Rangi | Mono(Yellow) |
| Mwangaza nyuma | self |
| Kiolesura | CPU/SPI/I²C |
| chapa ya paneli | WiseChip |
| mfano wa paneli | UG-2864ASYCG01 |
| aina ya paneli | PM-OLED , OLED |
| saizi ya paneli | 1.54 inch |
| azimio | 128×64 |
| eneo la kazi | 35.056×17.52 mm |
| muhtasari | 45.24×29.14×2.1 mm |
| uso | |
| mwangaza | 150 cd/m² (Typ.) |
| uwiano wa utofautishaji | 10000 : 1 (Typ.) |
| kuonyesha rangi | Mono(Yellow) (1-bit) |
| angle ya kutazama | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| dereva ic | COG Built-in SSD1305 |
| kiolesura cha ishara | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins |
| voltage ya pembejeo | 2.8/12.5V (Typ.)(VDD/VCC) |
| rohs: | |
| maombi | IA |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASWIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASWPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
| UG-2864ASYDT01 | WiseChip | 2.7 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864KLBLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KLBMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSWLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
| EL240.128.45 INT | PLANAR | 4.8 | 240×128 |
| EL640.480-AG1 ET CC | Lumineq | 8.1 | 640×480 |
| G057AGE-T01 | Innolux | 5.7 | 320×240 |
| G150XTT01.0 | AUO | 15.0 | 1024×768 |
| LQ064V3DG05 | SHARP | 6.4 | 640×480 |
| LQ084S3LG03 | SHARP | 8.4 | 800×600 |
| LQ104V1LG61 | SHARP | 10.4 | 640×480 |
| LTB190E3-L01 | Samsung | 19.0 | 1280×1024 |
| TM101JDHP01 | Tianma | 10.1 | 1280×800 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
