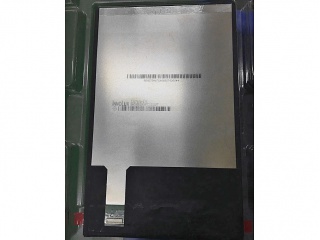

| Nambari ya Sehemu | ZJ070IA-17D |
| Chapa | Innolux |
| Ukubwa | 7.0 |
| Maombi | Pad & Tablet |
| Azimio | 800×1280 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 10S2P |
| Kiolesura | MIPI |
| chapa ya paneli | Innolux |
| saizi ya paneli | 7.0" |
| azimio | 800(RGB)×1280, WXGA, 215PPI |
| eneo la maonyesho | 94.2(W)×150.72(H) mm |
| saizi ya muhtasari | 103.5(W)×162.22(H) ×4.51(D) mm |
| mwangaza | 500 cd/m² (Typ.) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10) |
| mwonekano bora zaidi | Symmetry |
| kuonyesha rangi | 16.7M |
| masafa | 60Hz |
| uzito wa paneli | 87.0g (Max.) |
| kiolesura cha ishara | MIPI (4 data lanes) , 31 pins Connector |
| voltage ya pembejeo | 1.8/3.3V (Typ.)(VDD/VDDIO) |
| mazingira | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| mfano wa paneli | ZJ070IA-17D |
| aina ya paneli | a-Si TFT-LCD , LCM |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | 97.35(W)×153.82(H) mm |
| uso | Glare (Haze 0%), Hard coating (3H) |
| uwiano wa utofautishaji | 800:1 (Typ.) (TM) |
| hali ya kuonyesha | AAS, Normally Black, Transmissive |
| wakati wa majibu | 11/9 (Typ.)(Tr/Td) |
| aina ya taa | 10S2P WLED , 15K hours , Without Driver |
| skrini ya kugusa | Without |
| maombi | Pad & Tablet |
