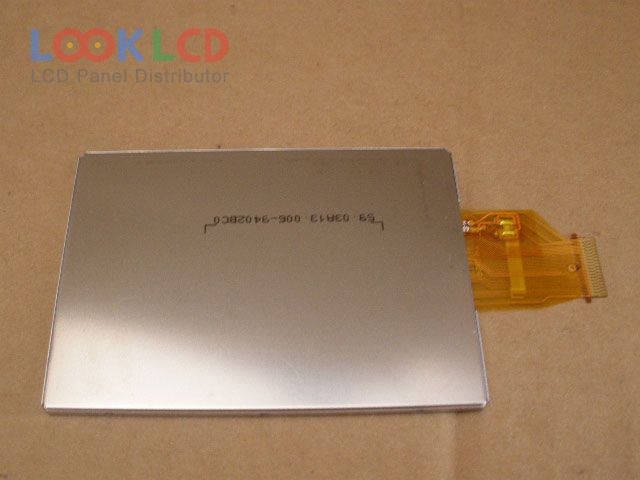

| Nambari ya Sehemu | A030DN01 VC |
| Chapa | AUO |
| Ukubwa | 3.0 |
| Maombi | DSC |
| Azimio | 320×240 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 300:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | Serial RGB |
| chapa ya paneli | AUO |
| mfano wa paneli | A030DN01 VC |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 3.0 inch |
| azimio | 320(RGB)×240 , QVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 60×45 mm |
| muhtasari | 70.2×51.4 mm |
| uso | Hard coating |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 10/25 (Typ.)(Tr/Td) |
| angle ya kutazama | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S1PWLEDWithout Driver |
| kiolesura cha ishara | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| voltage ya pembejeo | 3.3/15/-10V (Typ.)(VDD/VGH/VGL) |
| maombi | DSC |
