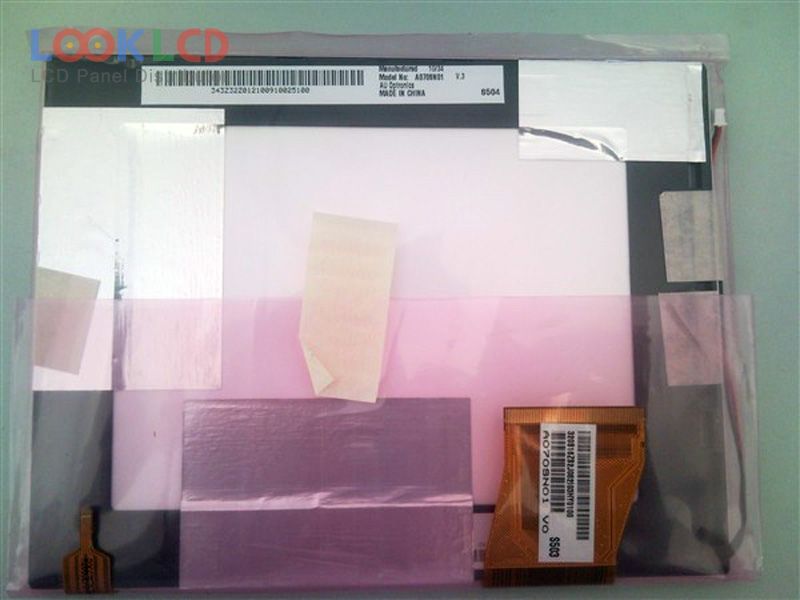

| Nambari ya Sehemu | A070SN01 V3 |
| Chapa | AUO |
| Ukubwa | 7.0 |
| Maombi | DPF |
| Azimio | 800×600 |
| Muundo | LCM |
| Mwangaza | 200 |
| CR | 500:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | AUO |
| mfano wa paneli | A070SN01 V3 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×600 , SVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 141.6×106.2 mm |
| muhtasari | 154×119.2×6.74 mm |
| uso | Antiglare (Haze 8%), Hard coating (3H) |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| wakati wa majibu | 3/13 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 3S6PWLEDWithout Driver |
| kiolesura cha ishara | TTL (1 ch, 6/8-bit), 60 pins |
| voltage ya pembejeo | 3.3/11.6/15/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| maombi | DPF |
