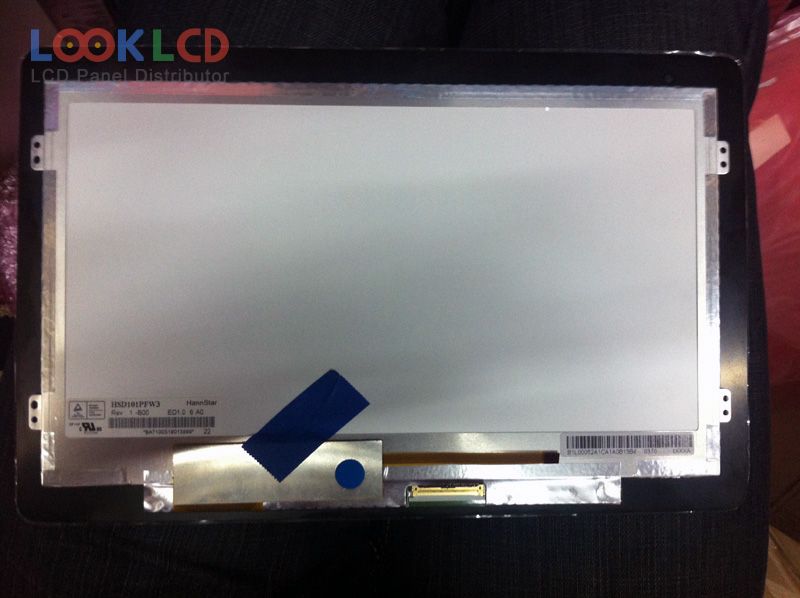

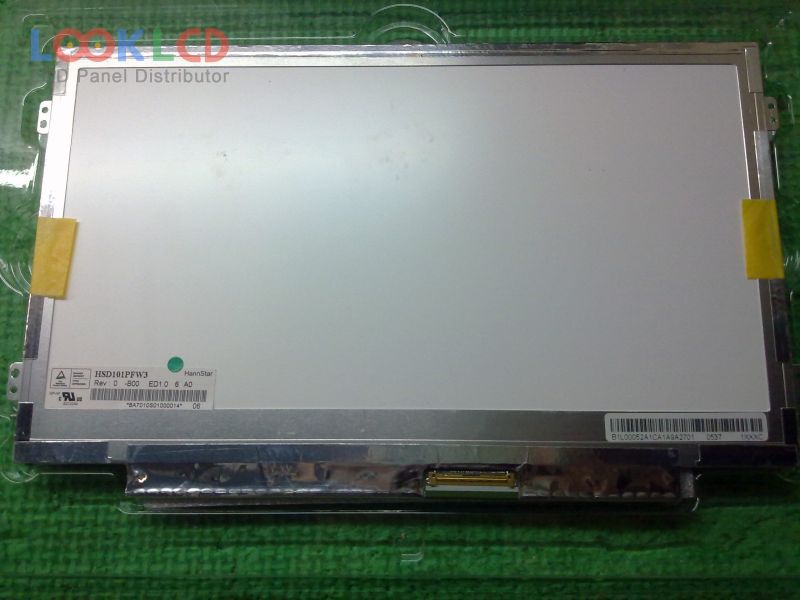

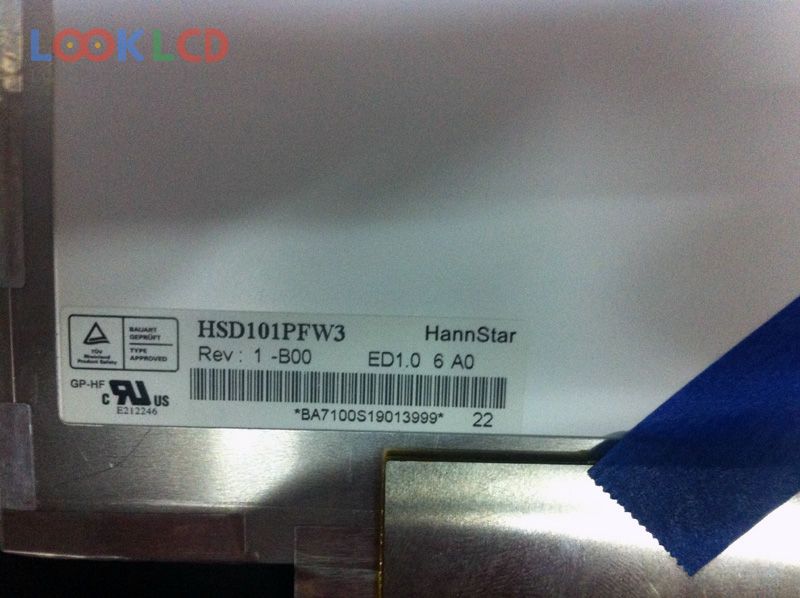

| Nambari ya Sehemu | HSD101PFW3-B00 |
| Chapa | HannStar |
| Ukubwa | 10.1 |
| Maombi | DPF |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 220 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | HannStar |
| mfano wa paneli | HSD101PFW3-B00 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 222.72×125.28 mm |
| muhtasari | 243×146.5×3.6 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 220 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193150% |
| wakati wa majibu | 4/12 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/70/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | DPF |
