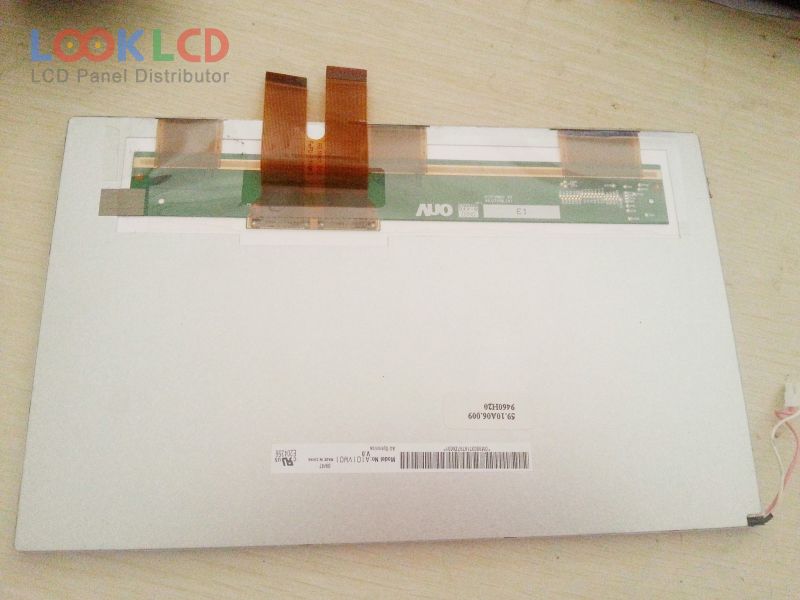

| Nambari ya Sehemu | A101VW01 V0 |
| Chapa | AUO |
| Ukubwa | 10.1 |
| Maombi | DPF |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 400:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | AUO |
| mfano wa paneli | A101VW01 V0 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 219.6×131.76 mm |
| muhtasari | 235×145.9×6.2 mm |
| uso | Antiglare |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 12/18 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 60 pins |
| voltage ya pembejeo | 3.3/8.8/15/-7.0/3.7V (Typ.)(VCC/AVDD/VGH/VGL/VCOM) |
| maombi | DPF |
| A101VW01 V0 | AUO | 10.1 | 800×480 |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| A101VW01 V3 | AUO | 10.1 | 800×480 |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| DLC1010DZG-T-8 | Other | 10.1 | 1280×800 |
| G101EVN01.3 | AUO | 10.1 | 1280×800 |
| LP101WX1-SLN2 | LG Display | 10.1 | 1280×800 |
| LTL101AL03-W01 | Samsung | 10.1 | 1280×800 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| A070SN01 V3 | AUO | 7.0 | 800×600 |
| A085FW01 V5 | AUO | 8.5 | 480×234 |
| A101VW01 V3 | AUO | 10.1 | 800×480 |
| AT080TN52 | Innolux | 8.0 | 800×600 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA104XA01CW | CPT | 10.4 | 1024×768 |
| EJ080NA-04C | Innolux | 8.0 | 1024×768 |
| LB070WV1-TD08 | LG Display | 7.0 | 800×480 |
| LTA070B0C0A | TOSHIBA | 7.0 | 480×234 |
