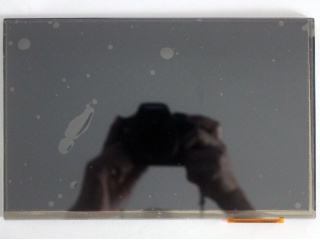

| Nambari ya Sehemu | AM-19201200FTZQW-T05 |
| Chapa | AMPIRE |
| Ukubwa | 10.1 |
| Maombi | Industrial |
| Azimio | 1920×1200 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | eDP |
| chapa ya paneli | AMPIRE |
| saizi ya paneli | 10.1" |
| azimio | 1920(RGB)×1200, WUXGA, 224PPI |
| eneo la maonyesho | 216.806(W)×135.504(H) mm |
| saizi ya muhtasari | 227.72(W)×146.13(H) ×7.2(D) mm |
| mwangaza | 320 cd/m² (Typ.) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| mwonekano bora zaidi | Symmetry |
| kuonyesha rangi | 16.7M 50% NTSC |
| masafa | 60Hz |
| uzito wa paneli | - |
| kiolesura cha ishara | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| mfano wa paneli | AM-19201200FTZQW-T05 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | - |
| uso | - |
| uwiano wa utofautishaji | 800:1 (Typ.) (TM) |
| hali ya kuonyesha | AHVA, Normally Black, Transmissive |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| aina ya taa | WLED , 30K hours , With LED Driver |
| skrini ya kugusa | PCAP |
| maombi | Industrial |
