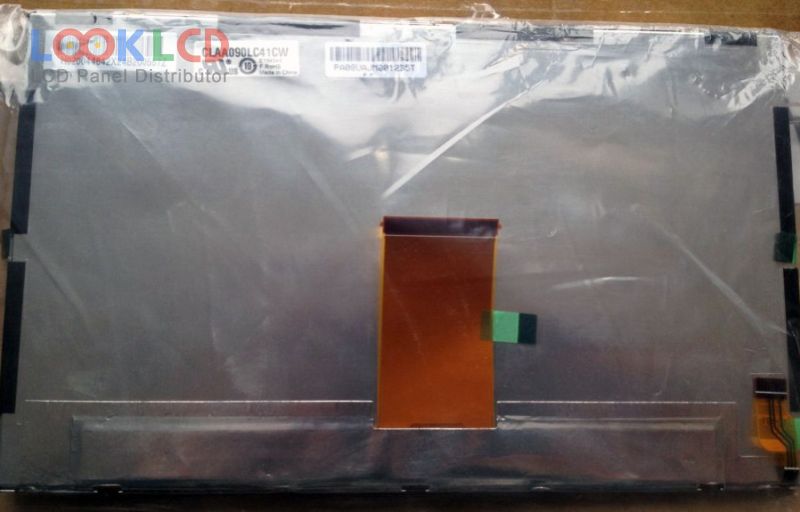

| Nambari ya Sehemu | CLAA090LC41CW |
| Chapa | CPT |
| Ukubwa | 9.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 450 |
| CR | 400:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | CPT |
| mfano wa paneli | CLAA090LC41CW |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 9.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 198×112.08 mm |
| muhtasari | 210.7×126.8×6 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 450 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193170% |
| wakati wa majibu | 10/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 8S2PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 60 pins |
| voltage ya pembejeo | 3.3/11.3/18.0/-6.0V (Typ.)(VCC/VDDA/VGH/VGL) |
| maombi | CNS |
