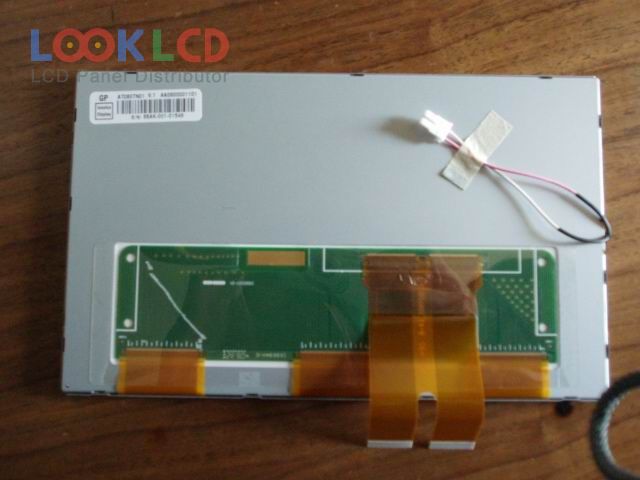

| Nambari ya Sehemu | AT080TN01 |
| Chapa | Innolux |
| Ukubwa | 8.0 |
| Maombi | DPF |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 300:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | INNOLUX |
| mfano wa paneli | AT080TN01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 176.64×99.36 mm |
| muhtasari | 192.8×116.9×6.7 mm |
| uso | Antiglare |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 15/20 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 60 pins |
| voltage ya pembejeo | 3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| maombi | DPF |
