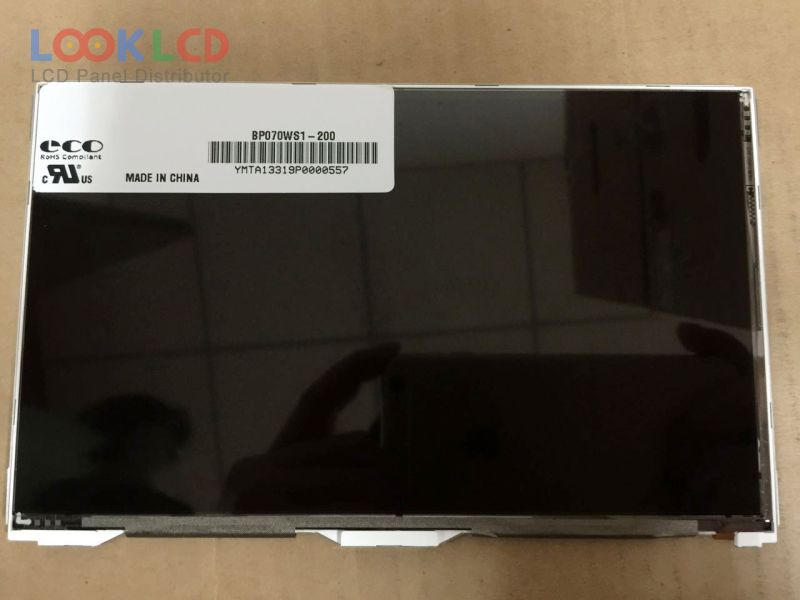

| Nambari ya Sehemu | BP070WS1-200 |
| Chapa | BOE |
| Ukubwa | 7.0 |
| Maombi | PAD |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 900:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | BOE |
| mfano wa paneli | BP070WS1-200 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| eneo la kazi | 153.6×90 mm |
| muhtasari | 164.05×102.6×2.75 mm |
| uso | Glare (Haze 0%), Hard coating (3H), Antireflection |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 900:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193152% |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 5S4PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 31 pins |
| voltage ya pembejeo | 3.7V (Typ.) |
| maombi | PAD |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| BP070WS1-200 | BOE | 7.0 | 1024×600 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| BP070WX6-400 | BOE | 7.0 | 800×1280 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| LTL070AL01-L01 | Samsung | 7.0 | 1280×800 |
| B080EAN01.1 | AUO | 8.0 | 800×1280 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| LP097X02-SLAA | LG Display | 9.7 | 1024×768 |
| LP125WH2-SLT1 | LG Display | 12.5 | 1366×768 |
| LSL080AL02-002 | Samsung | 8.0 | 800×1280 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| VVX07H005A10 | Panasonic | 7.0 | 800×1280 |
| YXD090TN02-40NM01 | SEBO | 9.0 | 1280×800 |
