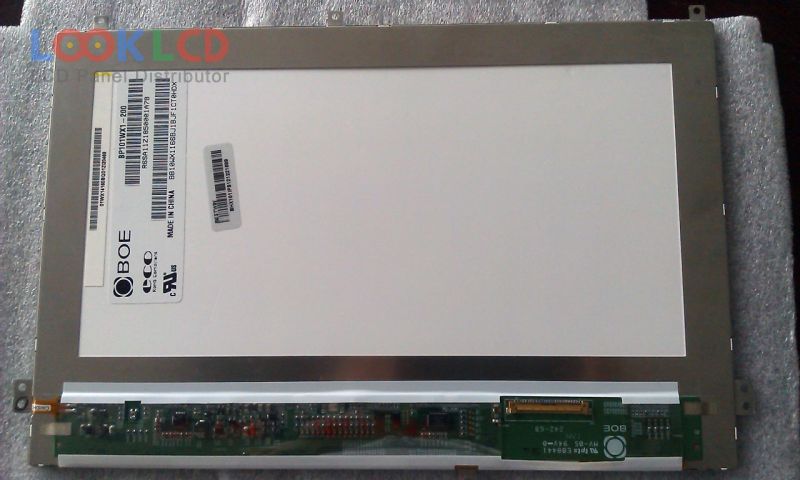

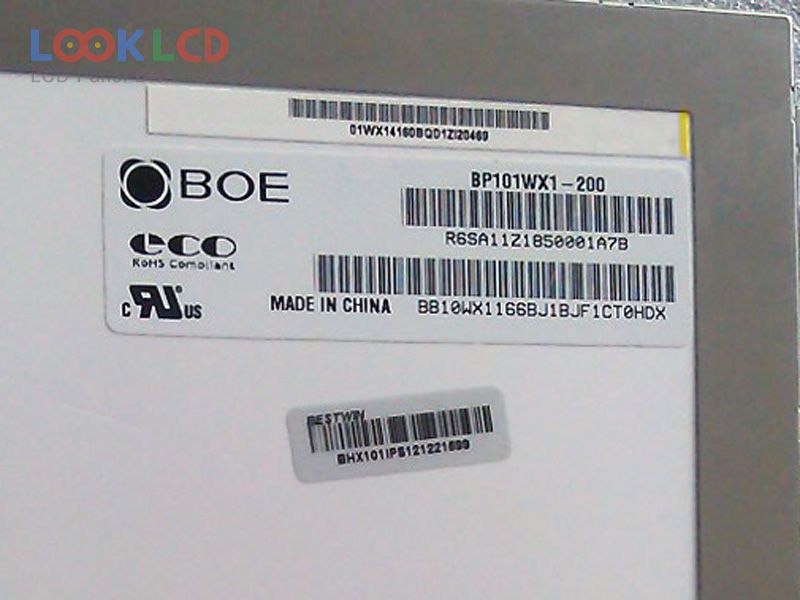

| Nambari ya Sehemu | BP101WX1-200 |
| Chapa | BOE |
| Ukubwa | 10.1 |
| Maombi | PAD |
| Azimio | 1280×800 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 600:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | BOE |
| mfano wa paneli | BP101WX1-200 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1280(RGB)×800 , WXGA |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| eneo la kazi | 216.96×135.6 mm |
| uso | Hard coating (3H), Antireflection |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Min.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193150% |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 6S6PWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PAD |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| BP101WX1-100 | BOE | 10.1 | 1280×800 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| G101EVN01.0 | AUO | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| BP070WX6-400 | BOE | 7.0 | 800×1280 |
| F101NWN7-0 | IVO | 10.1 | 1920×1200 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| HX104X02-100 | HYDIS | 10.4 | 1024×768 |
| LD070WX6-SM01 | LG Display | 7.0 | 800×1280 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| LTL089CL02-002 | Samsung | 8.9 | 1920×1200 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
