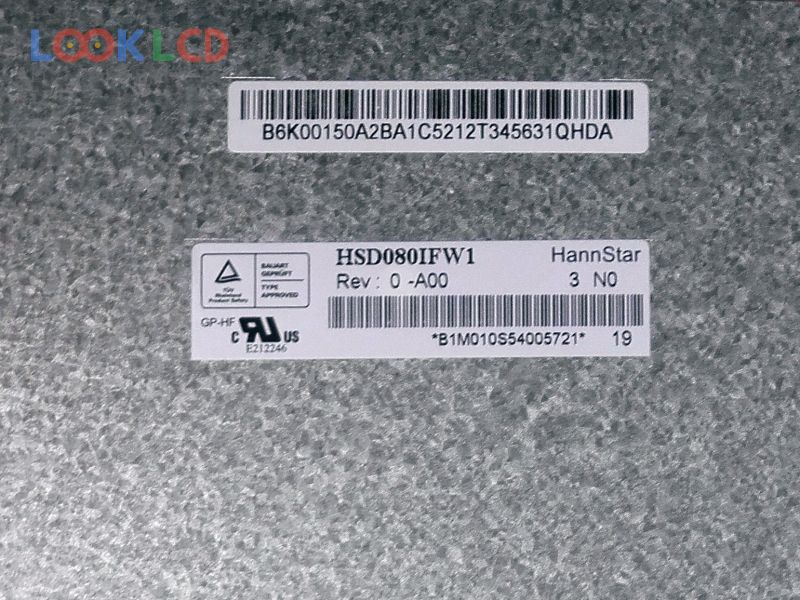

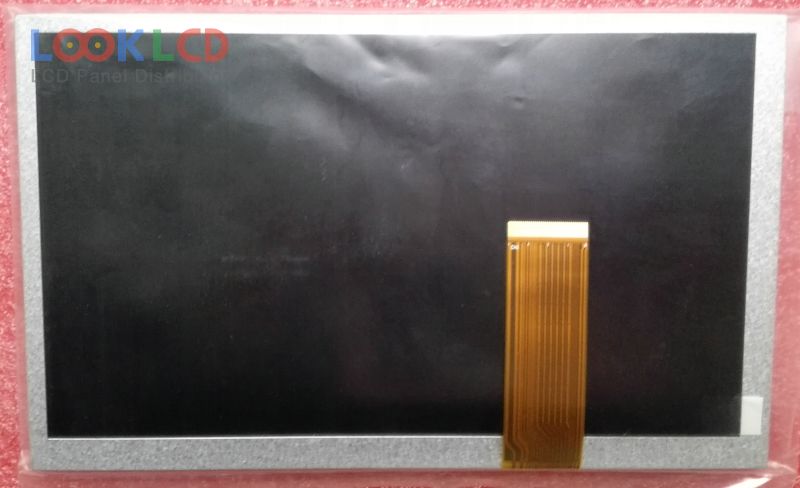

| Nambari ya Sehemu | HSD080IFW1-A00 |
| Chapa | HannStar |
| Ukubwa | 8.0 |
| Maombi | CNS |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 600 |
| CR | 800:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | HannStar |
| mfano wa paneli | HSD080IFW1-A00 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 176.64×99.36 mm |
| muhtasari | 192.8×116.9×4.7 mm |
| uso | |
| mwangaza | 600 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| wakati wa majibu | 4/12 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S13PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 40 pins |
| voltage ya pembejeo | 3.3/11.0/18.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| maombi | CNS |
