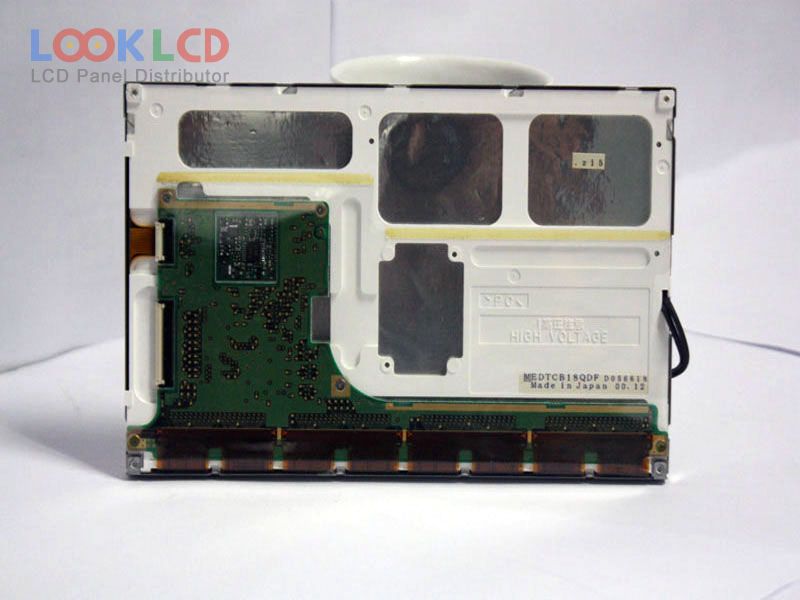

| Nambari ya Sehemu | EDTCB18QEF |
| Chapa | TOSHIBA |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 150:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | Toshiba Matsushita |
| mfano wa paneli | EDTCB18QEF |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 171×109.5×11.5 mm |
| uso | Antiglare |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 150:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 20/36 (Typ.)(Tr/Td) |
| angle ya kutazama | 60/60/30/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.)(VDD) |
| maombi | CNS |
