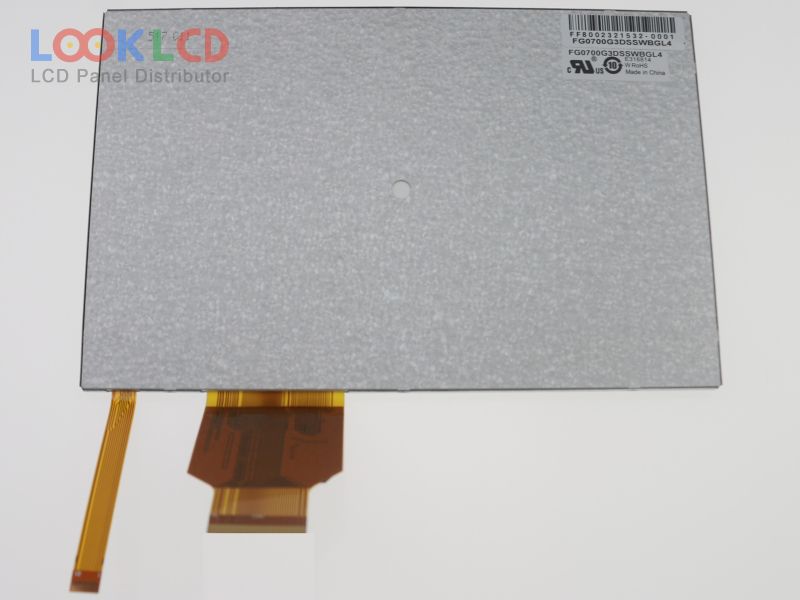

| Nambari ya Sehemu | FG0700G3DSSWBGL4 |
| Chapa | Data Image |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 900 |
| CR | 600:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | Data Image |
| mfano wa paneli | FG0700G3DSSWBGL4 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 165×106.4 mm |
| uso | |
| mwangaza | 900 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 5/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S10PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | CNS |
| 70WVW2T | SII | 7.0 | 800×480 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| FG0700G3DSSWBGL4 | Data Image | 7.0 | 800×480 |
| LD070WX3-SL01 | LG Display | 7.0 | 800×1280 |
| LTA070B070F | TOSHIBA | 7.0 | 800×480 |
| PM070WL3 | E Ink | 7.0 | 800×480 |
| AT070TN94 | Innolux | 7.0 | 800×480 |
| C070VW04 V5 | AUO | 7.0 | 800×480 |
| LA050WQ1-TD01 | LG Display | 5.0 | 480×272 |
| LB070WV7-TL01 | LG Display | 7.0 | 800×480 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
| LB080WV4-A1 | LG Display | 8.0 | 800×480 |
| LQ070Y5DG01 | SHARP | 7.0 | 800×480 |
| LTA070B792F | TOSHIBA | 7.0 | 800×480 |
| PW062XU7 | E Ink | 6.2 | 480×234 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
