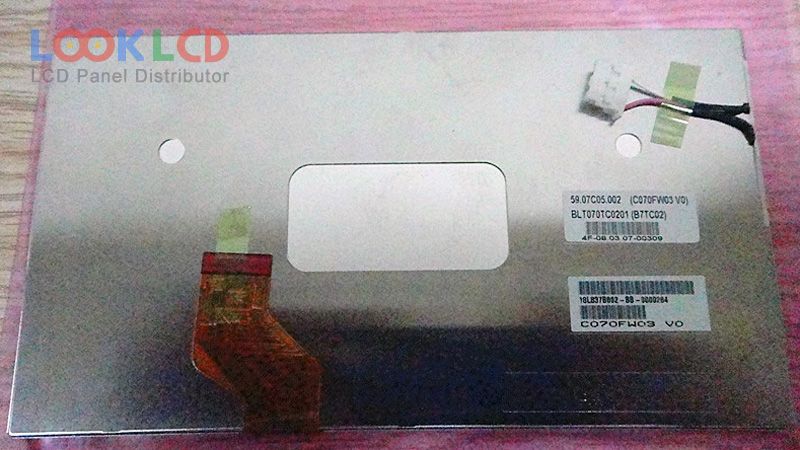

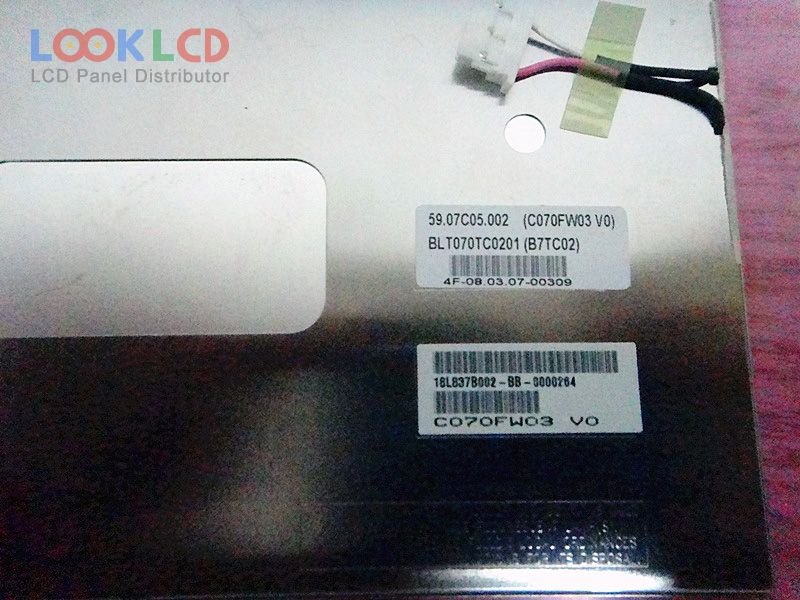

| Nambari ya Sehemu | C070FW03 V0 |
| Chapa | AUO |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 480×234 |
| Muundo | LCM |
| Mwangaza | 475 |
| CR | 300:1 |
| Rangi | |
| Mwangaza nyuma | CCFL |
| Kiolesura | Analog |
| chapa ya paneli | AUO |
| mfano wa paneli | C070FW03 V0 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 480(RGB)×234 |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 156.24×82.368 mm |
| muhtasari | 167×93 mm |
| uso | Antiglare (Haze 25%) |
| mwangaza | 475 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | , CIE193172% |
| wakati wa majibu | 15/20 (Typ.)(Tr/Td) |
| angle ya kutazama | 60/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | TFT Specific Analog RGB, 30 pins |
| voltage ya pembejeo | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | CNS |
