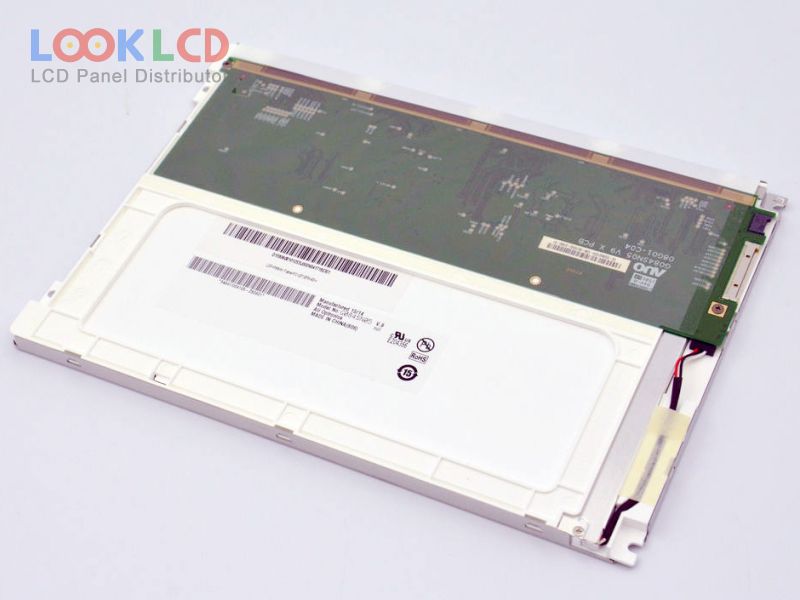

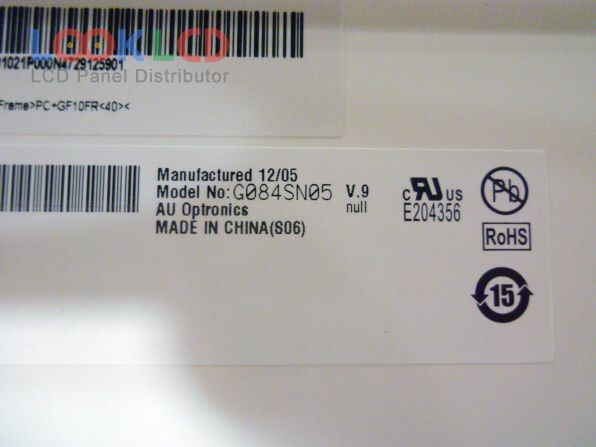

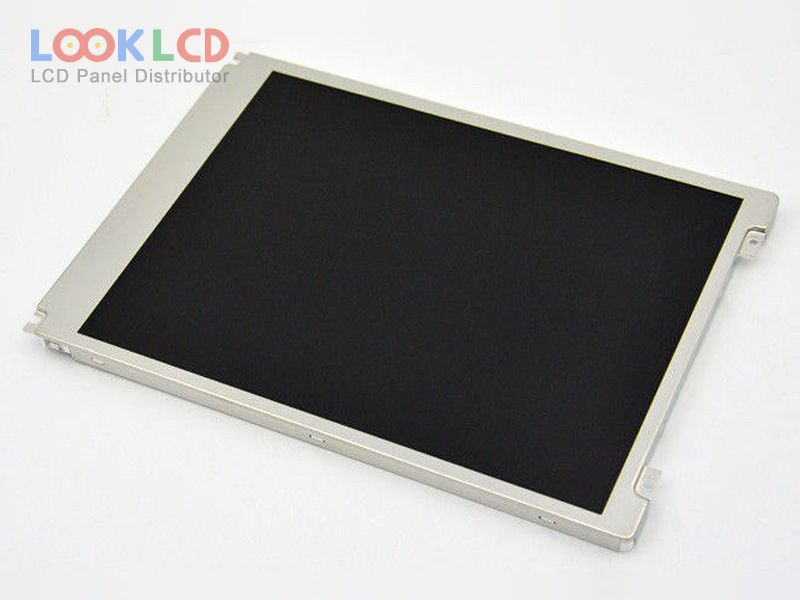

| Nambari ya Sehemu | G084SN05 V9 |
| Chapa | AUO |
| Ukubwa | 8.4 |
| Maombi | IA |
| Azimio | 800×600 |
| Muundo | LCM |
| Mwangaza | 450 |
| CR | 600:1 |
| Rangi | 262K/16.2M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | AUO |
| mfano wa paneli | G084SN05 V9 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.4 inch |
| azimio | 800(RGB)×600 , SVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 170.4×127.8 mm |
| muhtasari | 203×142.5×8 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 450 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K/16.2M (6-bit / 6-bit + FRC), CIE193145% |
| wakati wa majibu | 20/10 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 stringsWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
| G084SN02 V0 | AUO | 8.4 | 800×600 |
| G084SN03 V0 | AUO | 8.4 | 800×600 |
| G084SN03 V1 | AUO | 8.4 | 800×600 |
| G084SN03 V2 | AUO | 8.4 | 800×600 |
| G084SN03 V3 | AUO | 8.4 | 800×600 |
| G084SN05 V3 | AUO | 8.4 | 800×600 |
| G084SN05 V5 | AUO | 8.4 | 800×600 |
| G084SN05 V7 | AUO | 8.4 | 800×600 |
| G084SN05 V8 | AUO | 8.4 | 800×600 |
| G084SN05 V9 | AUO | 8.4 | 800×600 |
| G050VTN01.1 | AUO | 5.0 | 800×480 |
| LM057QC1T01 | SHARP | 5.7 | 320×240 |
| LM340UW1-SSA1 | LG Display | 34 | 3440×1440 |
| LQ070Y3LW01 | SHARP | 7.0 | 800×480 |
| LTD121C33U | TOSHIBA | 12.1 | 800×600 |
| MD400F640PD5 | Panasonic | 9.8 | 640×400 |
| NL10276BC20-18 | NLT | 10.4 | 1024×768 |
| NL3224BC35-20R | NLT | 5.5 | 320×240 |
| NL8060BC21-11 | NLT | 8.4 | 800×600 |
| TM057QVHG01 | Tianma | 5.7 | 640×480 |
