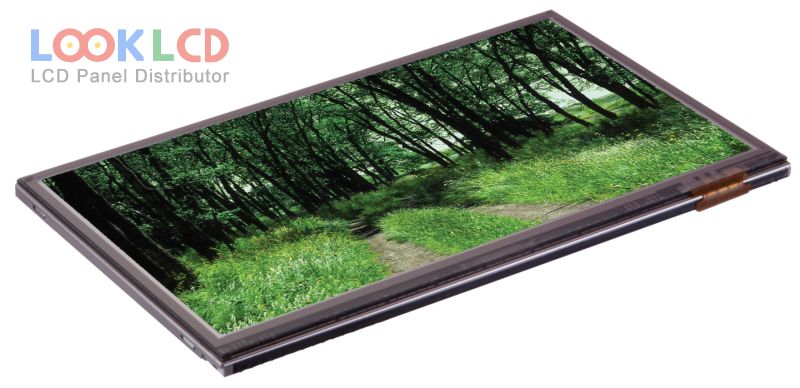

| Nambari ya Sehemu | LQ070Y3LW01 |
| Chapa | SHARP |
| Ukubwa | 7.0 |
| Maombi | IA |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 360 |
| CR | 800:1 |
| Rangi | 16.2M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ070Y3LW01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800×480(RGB) , WVGA |
| hali ya kuonyesha | ASV, Normally Black, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 163.2×104×9.5 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 360 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 16.2M (6-bit + FRC) |
| wakati wa majibu | 35 (Typ.)(Tr+Td) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 7S2PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LQ070T5DG01 | SHARP | 7.0 | 854×480 |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ070Y1LG12 | SHARP | 7.0 | 800×480 |
| LQ070Y3DG04 | SHARP | 7.0 | 800×480 |
| LQ070Y3DG3A | SHARP | 7.0 | 800×480 |
| LQ070Y3LW01 | SHARP | 7.0 | 800×480 |
| LQ070Y5DA02A | SHARP | 7.0 | 800×480 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| LQ070Y5DR04 | SHARP | 7.0 | 800×480 |
| AA070ME01-DA1 | Mitsubishi | 7.0 | 800×480 |
| AA104XD12 | Mitsubishi | 10.4 | 1024×768 |
| EL320.240-FA3 CC | Lumineq | 4.9 | 320×240 |
| G150XG01 V0 | AUO | 15.0 | 1024×768 |
| KG057QV1CA-G04 | Kyocera | 5.7 | 320×240 |
| LM32004 | SHARP | 5.7 | 320×240 |
| NL10276BC30-17 | NLT | 15.0 | 1024×768 |
| NL8060BC31-47 | NLT | 12.1 | 800×600 |
| OEL9M0073-B-E | Other | 1.0 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
