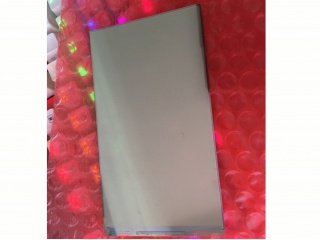

| Nambari ya Sehemu | H546DLK01.0 |
| Chapa | AUO |
| Ukubwa | 5.5 |
| Maombi | Mobile Phone |
| Azimio | 1080×1920 |
| Muundo | AM-OLED , OLED |
| Mwangaza | |
| CR | 10000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | self |
| Kiolesura | MIPI |
| chapa ya paneli | AUO |
| saizi ya paneli | 5.5" |
| azimio | 1080(RGB)×1920, FHD, 403PPI |
| eneo la maonyesho | 68.04(W)×120.96(H) mm |
| saizi ya muhtasari | 70.84(W)×128.01(H) ×0.92(D) mm |
| mwangaza | 350 cd/m² (Typ.) |
| angle ya kutazama | 80/80/80/80 (Min.)(CR≥1600) |
| mwonekano bora zaidi | Symmetry |
| kuonyesha rangi | 16.7M 100% NTSC |
| masafa | 100Hz |
| dereva ic | COG Built-in RM69071 |
| uzito wa paneli | - |
| kiolesura cha ishara | MIPI (4 data lanes) |
| voltage ya pembejeo | 1.8/3.1/5.8/4.6/-2.9V (Typ.)(IOVCC/VCI/AVDD/OVDD/OVSS) |
| mazingira | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| mfano wa paneli | H546DLK01.0 |
| aina ya paneli | AM-OLED , OLED |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | - |
| uso | Hard coating (3H) |
| uwiano wa utofautishaji | 10000:1 (Min.) (TM) |
| hali ya kuonyesha | - |
| wakati wa majibu | - |
| aina ya taa | self |
| skrini ya kugusa | Embeded Touch |
| maombi | Mobile Phone |
