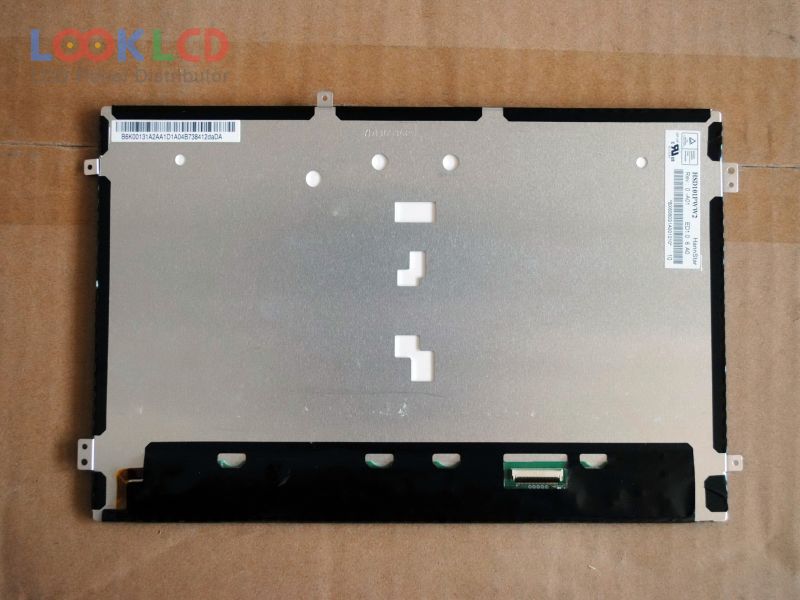

| Nambari ya Sehemu | HSD101PWW2-A01 |
| Chapa | HannStar |
| Ukubwa | 10.1 |
| Maombi | PAD |
| Azimio | 1280×800 |
| Muundo | LCM |
| Mwangaza | 650 |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | HannStar |
| mfano wa paneli | HSD101PWW2-A01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1280(RGB)×800 , WXGA |
| hali ya kuonyesha | HS-IPS, Normally Black, Transmissive |
| eneo la kazi | 216.96×135.6 mm |
| muhtasari | 229×151×5.18 mm |
| uso | Glare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.) |
| mwangaza | 650 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193145% |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 30 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PAD |
| HSD101PFW2-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-H00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A01 | HannStar | 10.1 | 1280×800 |
| B101EVT03.1 | AUO | 10.1 | 1280×800 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| HSD100PXN1-A00-C11 | HannStar | 10.0 | 1024×768 |
| LP097QX1-SPC1 | LG Display | 9.7 | 2048×1536 |
| LP097X02-SLAA | LG Display | 9.7 | 1024×768 |
| LP125WH2-SLT1 | LG Display | 12.5 | 1366×768 |
| N101ICE-G62 | Innolux | 10.1 | 1280×800 |
