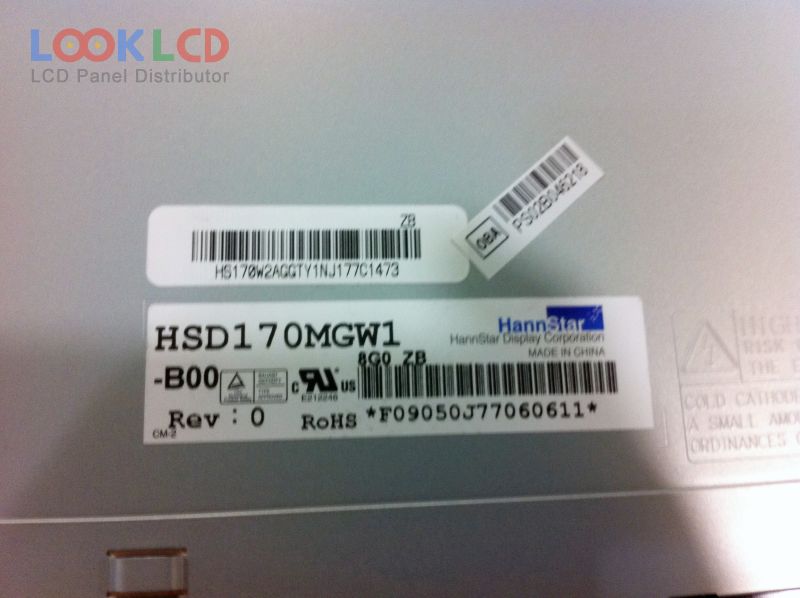

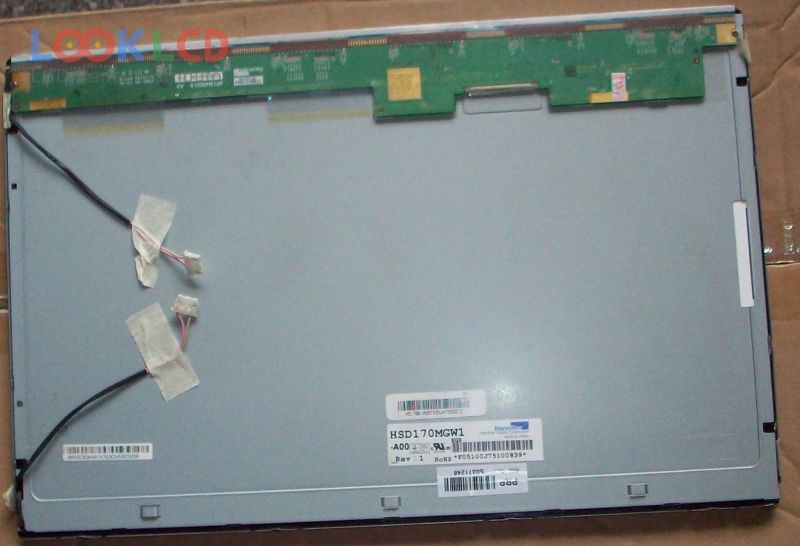

| Nambari ya Sehemu | HSD170MGW1-B00 |
| Chapa | HannStar |
| Ukubwa | 17.0 |
| Maombi | DMPC |
| Azimio | 1440×900 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 600:1 |
| Rangi | 16.2M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | HannStar |
| mfano wa paneli | HSD170MGW1-B00 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 17.0 inch |
| azimio | 1440(RGB)×900 , WXGA+ |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 367.2×229.5 mm |
| muhtasari | 389.2×254.5×11.8 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 16.2M (6-bit + FRC), CIE193163% |
| wakati wa majibu | 3/5 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/65/85 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (2 ch, 8-bit), 30 pins |
| voltage ya pembejeo | 5.0V (Typ.) |
| maombi | DMPC |
| HSD170ME13-A04 | HannStar | 17.0 | 1280×1024 |
| HSD170ME13-A05 | HannStar | 17.0 | 1280×1024 |
| HSD170MGW1-A00 | HannStar | 17.0 | 1440×900 |
| HSD170MGW1-B00 | HannStar | 17.0 | 1440×900 |
| HSD170MGW1-B01 | HannStar | 17.0 | 1440×900 |
| LM170E01-A4 | LG Display | 17.0 | 1280×1024 |
| LM170E01-TLA1 | LG Display | 17.0 | 1280×1024 |
| LTM170EU-L21 | Samsung | 17.0 | 1280×1024 |
| M170EG01 V5 | AUO | 17.0 | 1280×1024 |
| M170EP01 V0 | AUO | 17.0 | 1280×1024 |
| LM201WE3-TLJ3 | LG Display | 20.1 | 1680×1050 |
| LM230WF5-TLF1 | LG Display | 23.0 | 1920×1080 |
| LM240WU2-SLB4 | LG Display | 24.0 | 1920×1200 |
| LM270WF3-TLA1 | LG Display | 27.0 | 1920×1080 |
| LM270WQ1-SDDA | LG Display | 27.0 | 2560×1440 |
| M236HJK-L3B | Innolux | 23.6 | 1920×1080 |
| M240UW01 V3 | AUO | 24.0 | 1920×1200 |
| MT170EN01 V.9 | Innolux | 17.0 | 1280×1024 |
| MT190AW02 V.Y | Innolux | 19.0 | 1440×900 |
| SVA150XG04TB | SVA-NEC | 15.0 | 1024×768 |
