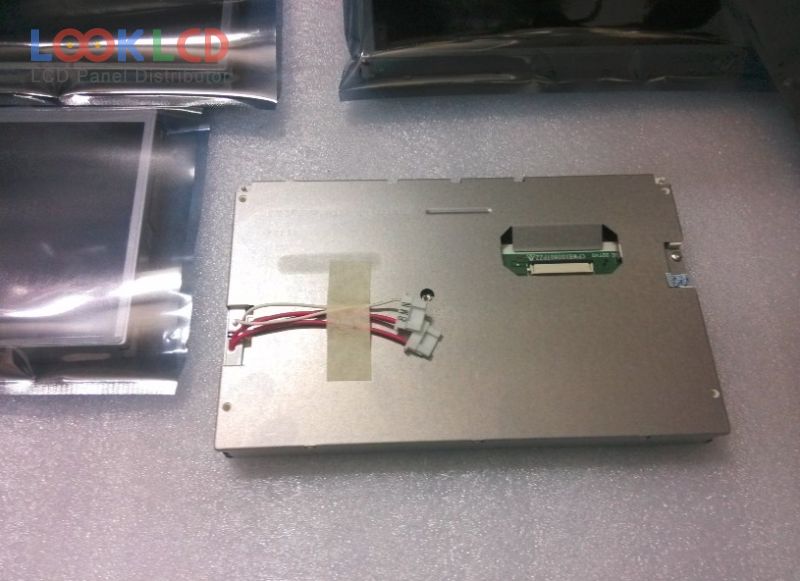

| Nambari ya Sehemu | LQ070T5DR01 |
| Chapa | SHARP |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 480×240 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 100:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ070T5DR01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 480(RGB)×240 , WQVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 154.08×87 mm |
| muhtasari | 170.1×103.4 mm |
| uso | Antiglare, Antireflection |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 100:1 (Min.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 30/50 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 36 pins |
| voltage ya pembejeo | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| maombi | CNS |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LQ070T5DG30 | SHARP | 7.0 | |
| LQ070T5DR01 | SHARP | 7.0 | 480×240 |
| LQ070Y3DG01 | SHARP | 7.0 | 800×480 |
| LQ070Y3DG04 | SHARP | 7.0 | 800×480 |
| LQ070Y3LW01 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG01 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG12 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| AT080TN42 | Innolux | 8.0 | 800×600 |
| AT101WSM-NW0-3800(3900) | BOE | 10.1 | 1024×600 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| HSD070PFW3-C01 | HannStar | 7.0 | 1024×600 |
| LA050WQ1-TD01 | LG Display | 5.0 | 480×272 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| PW070XUA | E Ink | 7.0 | 480×234 |
| TD070WGCB1 | TPO | 7.0 | 854×480 |
| TFD65W30 | TOSHIBA | 6.5 | 400×234 |
