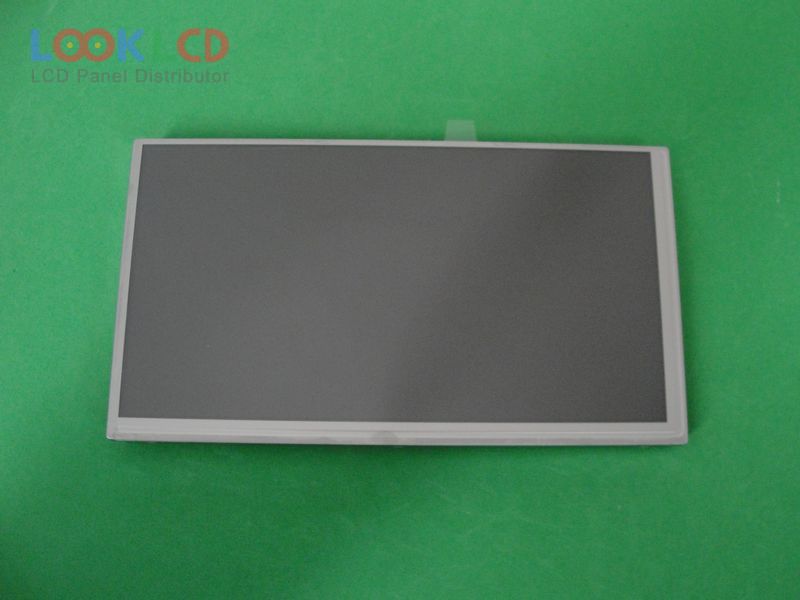

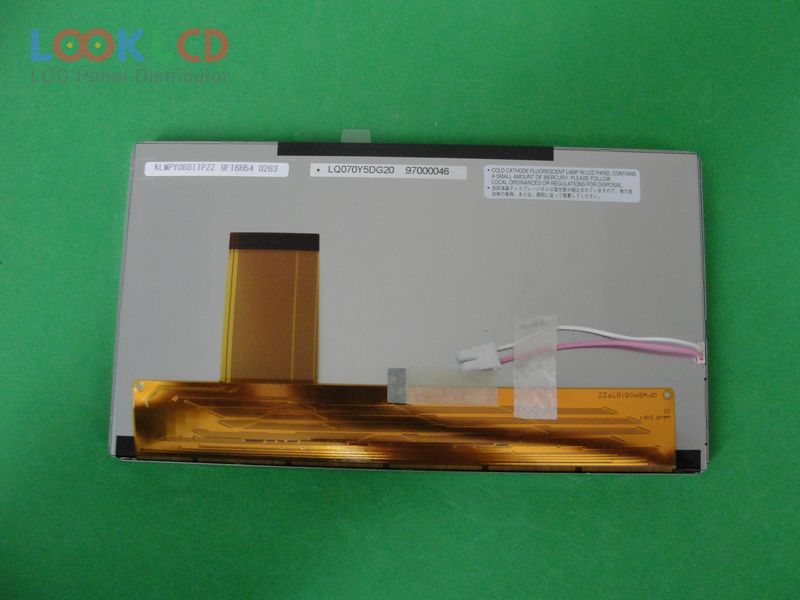

| Nambari ya Sehemu | LQ070Y5DG20 |
| Chapa | SHARP |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 500 |
| CR | 100:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ070Y5DG20 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 156×82.8 mm |
| muhtasari | 167×93×7.5 mm |
| uso | Antiglare |
| mwangaza | 500 cd/m² (Typ.) |
| uwiano wa utofautishaji | 100:1 (Min.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 30/50 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/65/60 (Typ.)(CR≥5)(L/R/U/D) |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 50 pins |
| voltage ya pembejeo | 5.3/3.3/15/-12V (Typ.)(VSHA/VSHD/VDD/VEE) |
| maombi | CNS |
