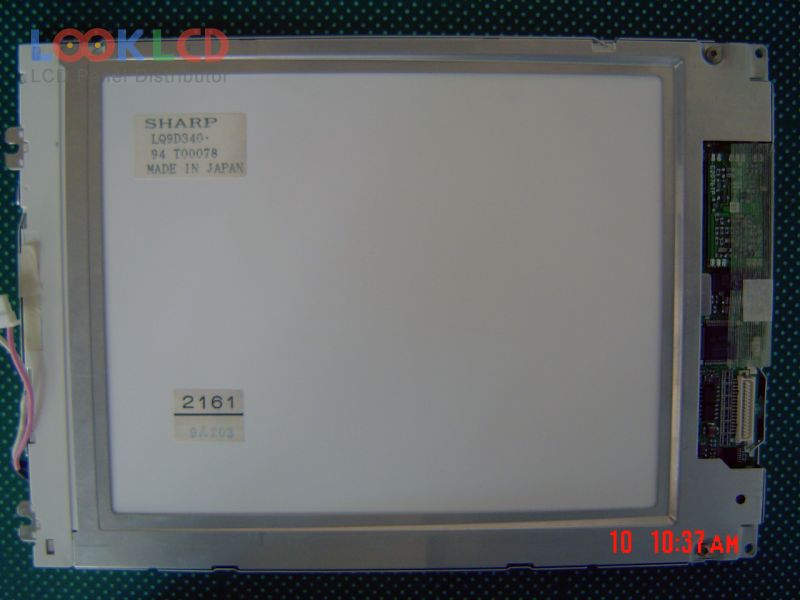

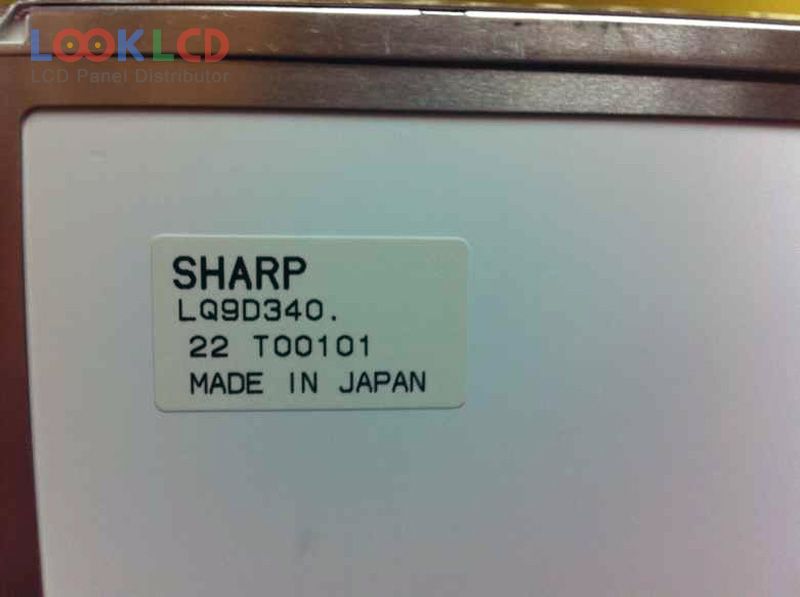

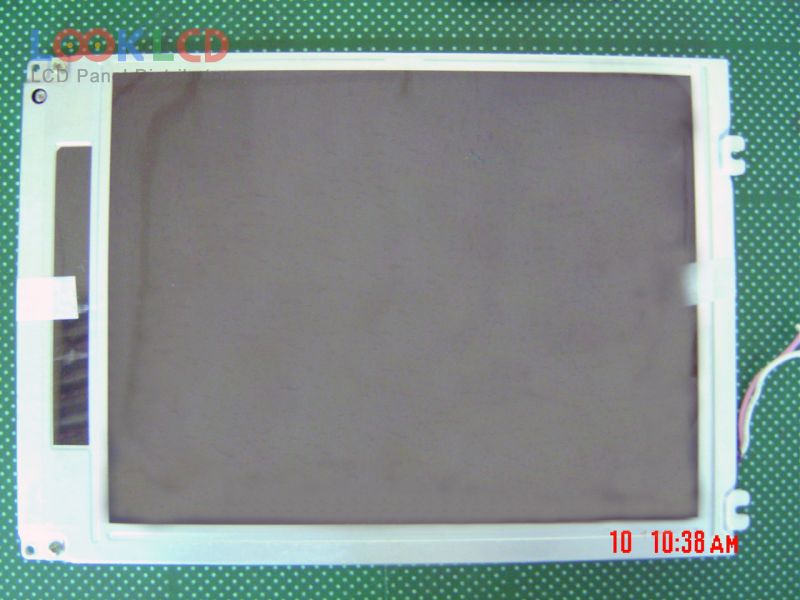

| Nambari ya Sehemu | LQ9D340 |
| Chapa | SHARP |
| Ukubwa | 8.4 |
| Maombi | IA |
| Azimio | 640×480 |
| Muundo | LCM |
| Mwangaza | 115 |
| CR | 100:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ9D340 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.4 inch |
| azimio | 640(RGB)×480 , VGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 170.88×129.6 mm |
| muhtasari | 216×152.4 mm |
| uso | Clear, Hard coating (2H) |
| mwangaza | 115 cd/m² (Typ.) |
| uwiano wa utofautishaji | 100:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 20/40 (Typ.)(Tr/Td) |
| angle ya kutazama | 50/50/30/50 (Min.)(CR≥10)(L/R/U/D) |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 31 pins |
| voltage ya pembejeo | 3.3V (Typ.)(VCC) |
| maombi | IA |
