Innolux MT190AW02 V.4 hifadhidata, vipimo, hisa, programu www.looklcd-mk.com
LookLCD LookLCD


MT190AW02 V.4

MT190AW02 V.4
MT190AW02 V.4
MT190AW02 V.4
MT190AW02 V.4 thumb MT190AW02 V.4 thumb MT190AW02 V.4 thumb
Chapa
Innolux
Ukubwa
19.0
Maombi
DMPC
Azimio
1440×900
Muundo
LCM
Mwangaza
250
CR
1000:1
Rangi
16.7M
Mwangaza nyuma
WLED
Kiolesura
LVDS
In Stock
12893
Vipimo

Nambari ya Sehemu MT190AW02 V.4
ChapaInnolux
Ukubwa19.0
MaombiDMPC
Azimio1440×900
MuundoLCM
Mwangaza250
CR1000:1
Rangi16.7M
Mwangaza nyumaWLED
KiolesuraLVDS
chapa ya paneliINNOLUX
mfano wa paneliMT190AW02 V.4
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli19.0 inch
azimio1440(RGB)×900 , WXGA+
hali ya kuonyeshaTN, Normally White, Transmissive
eneo la kazi408.24×255.15 mm
muhtasari428×278×10.82 mm
usoAntiglare, Hard coating (3H)
mwangaza250 cd/m² (Typ.)
uwiano wa utofautishaji1000:1 (Typ.)
kuonyesha rangi16.7M (6-bit + Hi-FRC), CIE193172%
wakati wa majibu1.5/3.5 (Typ.)(Tr/Td)
angle ya kutazama85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taa11S8PWLEDWithout Driver

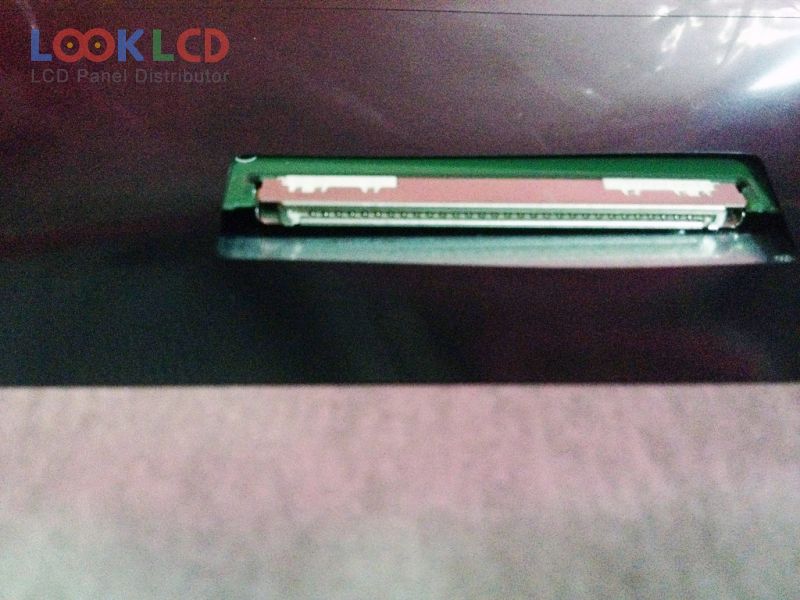

kiolesura cha isharaLVDS (2 ch, 8-bit), 30 pins
voltage ya pembejeo5.0V (Typ.)
maombiDMPC
