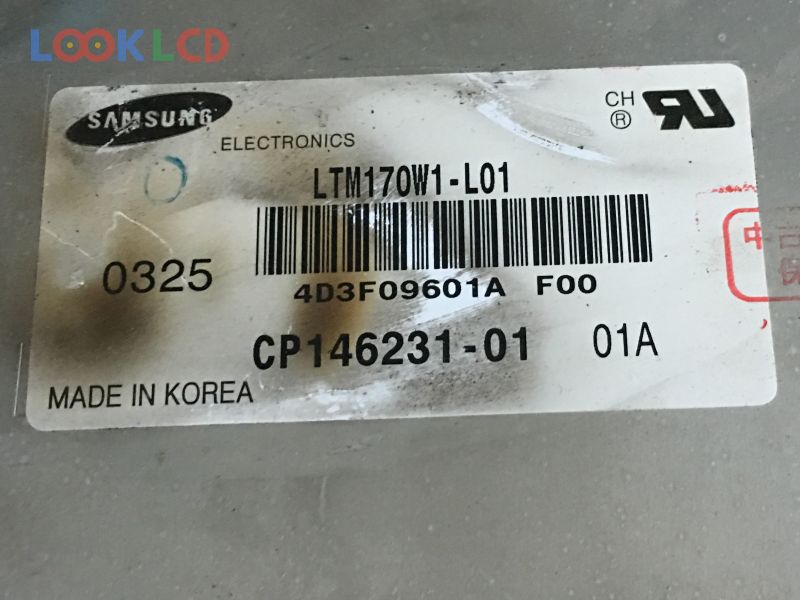

| Nambari ya Sehemu | LTM170W1-L01 |
| Chapa | Samsung |
| Ukubwa | 17.0 |
| Maombi | DMPC |
| Azimio | 1280×768 |
| Muundo | LCM |
| Mwangaza | 450 |
| CR | 400:1 |
| Rangi | 16.2M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | SAMSUNG |
| mfano wa paneli | LTM170W1-L01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 17.0 inch |
| azimio | 1280(RGB)×768 , WXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 370.56×222.336 mm |
| muhtasari | 404×258×16.7 mm |
| uso | Antiglare (Haze 25%), Hard coating (3H) |
| mwangaza | 450 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 16.2M (6-bit + FRC) |
| wakati wa majibu | 5/20 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | DMPC |
