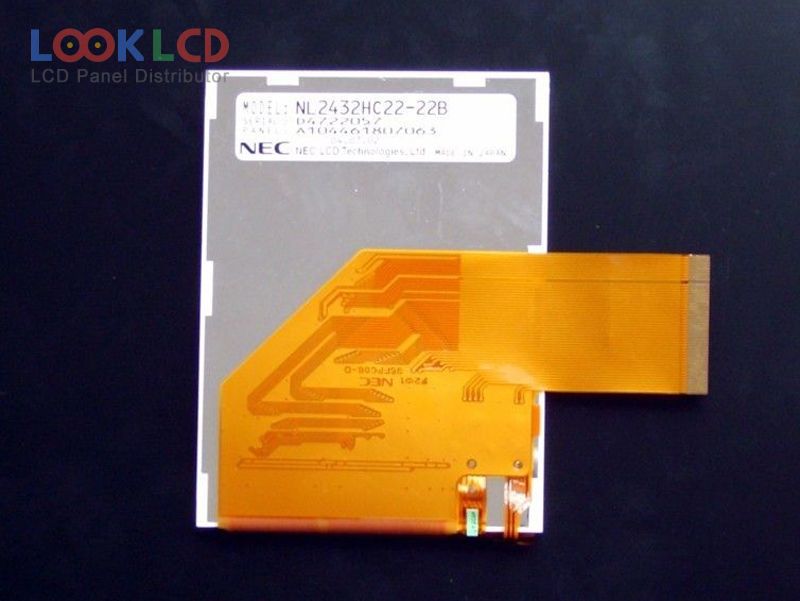

| Nambari ya Sehemu | NL2432HC22-22B |
| Chapa | NLT |
| Ukubwa | 3.5 |
| Maombi | PDA |
| Azimio | 240×320 |
| Muundo | LCM |
| Mwangaza | 90 |
| CR | 90:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | NEC |
| mfano wa paneli | NL2432HC22-22B |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 3.5 inch |
| azimio | 240(RGB)×320 , QVGA |
| hali ya kuonyesha | TN, Normally White, Transflective |
| eneo la kazi | 53.64×71.52 mm |
| muhtasari | 64×85×4.85 mm |
| uso | |
| mwangaza | 90 cd/m² (Typ.) |
| uwiano wa utofautishaji | 90:1 (Typ.)(Transmissive)6:1 (Typ.)(Reflective) |
| kuonyesha rangi | 262K (6-bit), CIE193140% |
| wakati wa majibu | 14/25 (Typ.)(Tr/Td) |
| angle ya kutazama | |
| masafa | 60Hz |
| aina ya taa | 6S1PWLEDWithout Driver |
| kiolesura cha ishara | CMOS (1 ch, 6-bit), 50 pins |
| voltage ya pembejeo | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| maombi | PDA |
