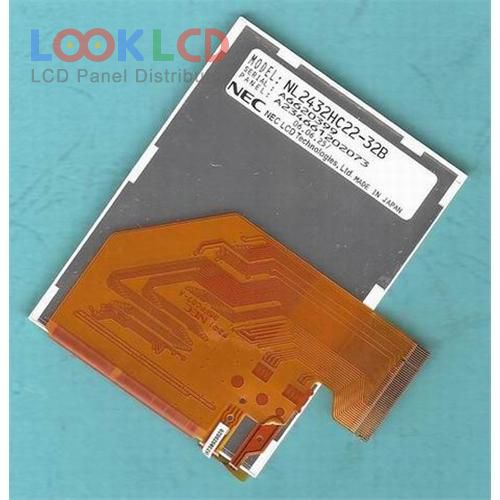

| Nambari ya Sehemu | NL2432HC22-32B |
| Chapa | NLT |
| Ukubwa | 3.5 |
| Maombi | PDA |
| Azimio | 240×320 |
| Muundo | LCM |
| Mwangaza | 100 |
| CR | 70:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | NEC |
| mfano wa paneli | NL2432HC22-32B |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 3.5 inch |
| azimio | 240(RGB)×320 , QVGA |
| hali ya kuonyesha | TN, Normally White, Transflective |
| eneo la kazi | 53.64×71.52 mm |
| muhtasari | 64×85 mm |
| uso | Antiglare |
| mwangaza | 100 cd/m² (Typ.) |
| uwiano wa utofautishaji | 70:1 (Typ.)(Transmissive) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 39 (Typ.)(Tr+Td) |
| angle ya kutazama | 25/25/25/20 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | WLED |
| kiolesura cha ishara | CMOS (1 ch, 6-bit) |
| voltage ya pembejeo | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| maombi | PDA |
