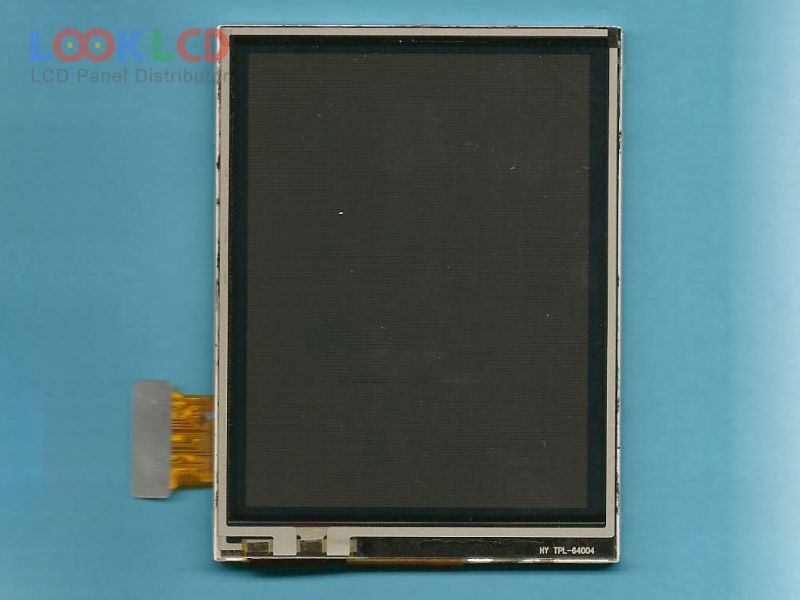

| Nambari ya Sehemu | TD035STEB2 |
| Chapa | TPO |
| Ukubwa | 3.5 |
| Maombi | PDA |
| Azimio | 240×320 |
| Muundo | LCM |
| Mwangaza | 100 |
| CR | 100:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | Toppoly |
| mfano wa paneli | TD035STEB2 |
| aina ya paneli | LTPS TFT-LCD , LCM |
| saizi ya paneli | 3.5 inch |
| azimio | 240(RGB)×320 , QVGA |
| hali ya kuonyesha | TN, Normally White, Transflective |
| eneo la kazi | 53.64×71.52 mm |
| muhtasari | 64×85×4.9 mm |
| uso | |
| mwangaza | 100 cd/m² (Typ.) |
| uwiano wa utofautishaji | 100:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| kuonyesha rangi | 262K (6-bit), CIE193140% |
| wakati wa majibu | 10/20 (Typ.)(Tr/Td) |
| angle ya kutazama | 55/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 6S1PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 60 pins |
| voltage ya pembejeo | 3.3/5.0/11.7/-6.5V (Typ.)(VCC3/VCC5/VDD/VEE) |
| maombi | PDA |
| EL160.80.50 ALU | PLANAR | 3.5 | 160×80 |
| LMS350GF07-005 | Samsung | 3.5 | 320×240 |
| PD035QX1 | E Ink | 3.5 | 240×320 |
| TD035SHED1 | TPO | 3.5 | 480×640 |
| TD035STEB1 | TPO | 3.5 | 240×320 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
| TD035STED4 | TPO | 3.5 | 240×320 |
| TD035STED7 | TPO | 3.5 | 240×320 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| ACX502BMU-7 | SONY | 3.5 | 240×320 |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LTE283QV-F01 | Samsung | 2.8 | 320×240 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
