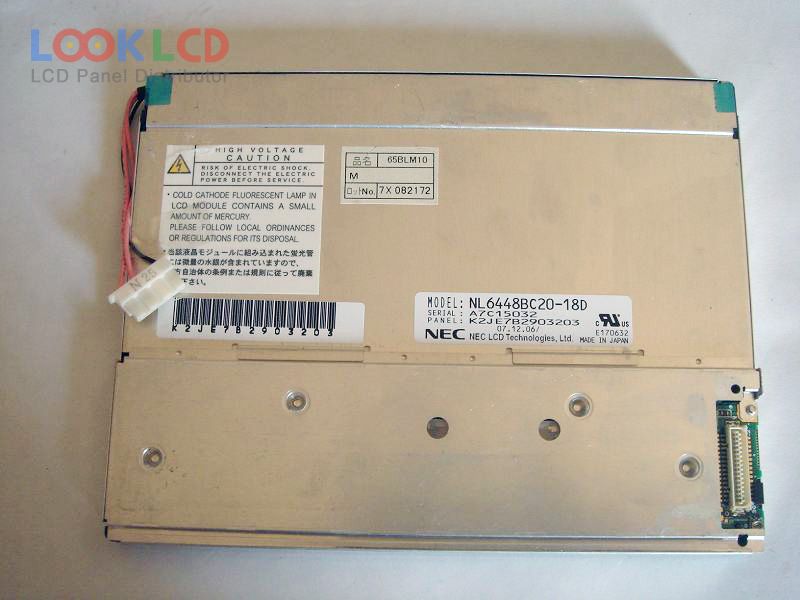

| Nambari ya Sehemu | NL6448BC20-18D |
| Chapa | NLT |
| Ukubwa | 6.5 |
| Maombi | IA |
| Azimio | 640×480 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | NEC |
| mfano wa paneli | NL6448BC20-18D |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 6.5 inch |
| azimio | 640(RGB)×480 , VGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 132.48×99.36 mm |
| muhtasari | 153×118 mm |
| uso | Antiglare, Hard coating (2H) |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193140% |
| wakati wa majibu | 6/19 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | CMOS (1 ch, 6-bit), 31 pins |
| voltage ya pembejeo | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| maombi | IA |
