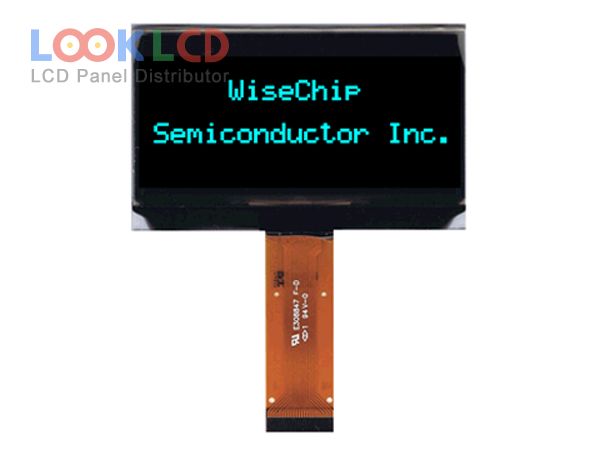

| Nambari ya Sehemu | UG-2864ALBPG01 |
| Chapa | WiseChip |
| Ukubwa | 2.4 |
| Maombi | IA |
| Azimio | 128×64 |
| Muundo | OLED |
| Mwangaza | 80 |
| CR | 10000:1 |
| Rangi | Mono(Blue) |
| Mwangaza nyuma | self |
| Kiolesura | CPU/SPI/I²C |
| chapa ya paneli | WiseChip |
| mfano wa paneli | UG-2864ALBPG01 |
| aina ya paneli | PM-OLED , OLED |
| saizi ya paneli | 2.4 inch |
| azimio | 128×64 |
| eneo la kazi | 55.01×27.49 mm |
| muhtasari | 60.5×37 mm |
| uso | |
| mwangaza | 80 cd/m² (Typ.) |
| uwiano wa utofautishaji | 10000 : 1 (Min.) |
| kuonyesha rangi | Mono(Blue) (1-bit) |
| angle ya kutazama | |
| dereva ic | COG Built-in SSD1309 |
| kiolesura cha ishara | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins |
| voltage ya pembejeo | 2.8/13.0V (Typ.)(VDD/VCC) |
| maombi | IA |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASGPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASWIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASWPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASYDT01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASYPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864KLBMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSWMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
| CRD070TN03-50NM01 | Other | 7.0 | 800×480 |
| EW50855BMW | EDT | 4.7 | 320×240 |
| KG057QV1CA-G01 | Kyocera | 5.7 | 320×240 |
| LM057QB1T09 | SHARP | 5.7 | 320×240 |
| LM64C21P | SHARP | 8.0 | 640×480 |
| LQ121S1DG41 | SHARP | 12.1 | 800×600 |
| LQ121S1LG79 | SHARP | 12.1 | 800×600 |
| NL10276BC12-02 | NLT | 6.3 | 1024×768 |
| OEL9M0064-R-E | Other | 2.0 | 128×32 |
| PD104SLD | E Ink | 10.4 | 800×600 |
