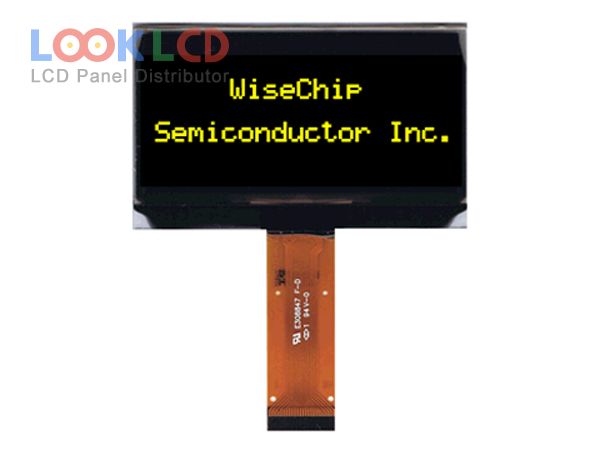

| Nambari ya Sehemu | UG-2864ASYPG01 |
| Chapa | WiseChip |
| Ukubwa | 2.4 |
| Maombi | IA |
| Azimio | 128×64 |
| Muundo | OLED |
| Mwangaza | 80 |
| CR | |
| Rangi | Mono(Yellow) |
| Mwangaza nyuma | self |
| Kiolesura | CPU/SPI/I²C |
| chapa ya paneli | WiseChip |
| mfano wa paneli | UG-2864ASYPG01 |
| aina ya paneli | PM-OLED , OLED |
| saizi ya paneli | 2.4 inch |
| azimio | 128×64 |
| eneo la kazi | 55.01×27.49 mm |
| muhtasari | 60.5×37 mm |
| uso | |
| mwangaza | 80 cd/m² (Typ.) |
| uwiano wa utofautishaji | |
| kuonyesha rangi | Mono(Yellow) |
| angle ya kutazama | |
| dereva ic | Built-in SSD1309 |
| kiolesura cha ishara | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| maombi | IA |
