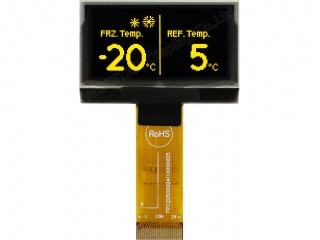

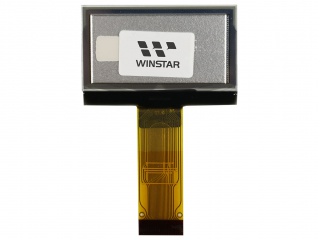

| Nambari ya Sehemu | WEO012864AL |
| Chapa | Winstar |
| Ukubwa | 1.54 |
| Maombi | Handheld & PDA I |
| Azimio | 128×64 |
| Muundo | PM-OLED, OLED |
| Mwangaza | |
| CR | |
| Rangi | Mono(Yellow) |
| Mwangaza nyuma | self |
| Kiolesura | 8-bit |
| chapa | Winstar |
| mfano | WEO012864AL |
| ukubwa wa diagonal | 1.54 inch |
| aina | PM-OLED, OLED |
| muundo wa pixel | 128×64 92PPI |
| usanidi | Rectangle |
| eneo la kazi | 35.05(H)×17.51(V) mm |
| muhtasari dim. | 42.04(H)×23.03(V) ×1.55(D) mm |
| eneo la bezel | 37.05(H)×19.52(V) mm |
| matibabu | - |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | - |
| angle ya kutazama | - |
| hali ya uendeshaji | - |
| rangi ya msaada | Mono(Yellow) |
| chanzo cha mwanga | self |
| uzito | - |
| iliyoundwa kwa ajili ya | Handheld & PDA Instruments & Meters Comm Device Home Appliance Healthcare |
| kiwango cha fremu | - |
| jopo la kugusa | Without |
| maelezo ya d-ic | COG Built-in SSD1309ZC |
| aina ya kiolesura | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 24 pins FPC |
| usambazaji wa nguvu | 3.0/12.5V (Typ.)(VDD/VCC) |
| mazingira | Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C |
| DLC0154AZG-T | Other | 1.54 | 240×240 |
| H154QN01 V2 | AUO | 1.54 | 240×240 |
| HGS128647-Y-EH-LV | Other | 1.54 | 128×64 |
| LH154Q01-TD01 | LG Display | 1.54 | 240×240 |
| OEL9M0072-B-E | Other | 1.54 | 128×64 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KLBMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSWMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
