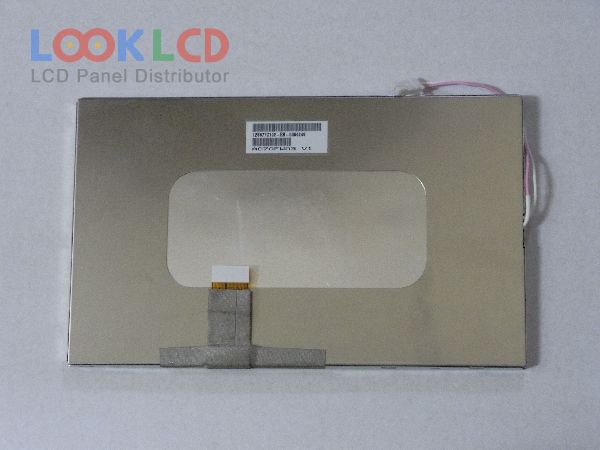

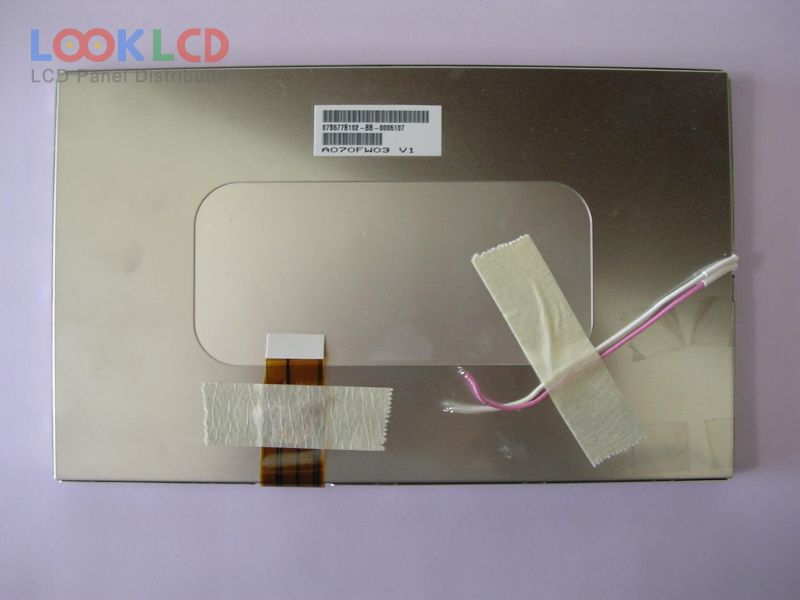

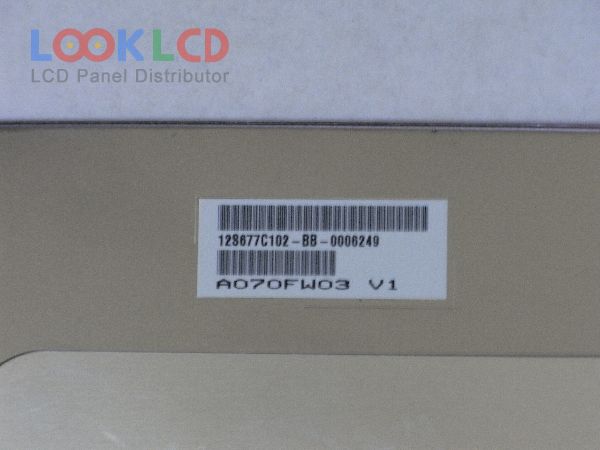

| Nambari ya Sehemu | A070FW03 V1 |
| Chapa | AUO |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 480×234 |
| Muundo | LCM |
| Mwangaza | 500 |
| CR | 300:1 |
| Rangi | |
| Mwangaza nyuma | CCFL |
| Kiolesura | Analog |
| chapa ya paneli | AU Optronics |
| mfano wa paneli | A070FW03 V1 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 480(RGB)×234 |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 154.08×86.58 mm |
| muhtasari | 164.9×100 mm |
| uso | Antiglare (Haze 5.5%) |
| mwangaza | 500 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | |
| wakati wa majibu | 12/18 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/40/65 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | TFT Specific Analog RGB, 26 pins |
| voltage ya pembejeo | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | CNS |
| A070FW01 | AUO | 7.0 | 480×234 |
| A070FW03 V1 | AUO | 7.0 | 480×234 |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| A070FW03 V4 | AUO | 7.0 | 480×234 |
| A070FW03 V6 | AUO | 7.0 | 480×234 |
| A070FW03 V7 | AUO | 7.0 | 480×234 |
| A070FW03 V8 | AUO | 7.0 | 480×234 |
| A070FW03 VB | AUO | 7.0 | 480×234 |
| A070FW03 VD | AUO | 7.0 | 480×234 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| AT050TN35 | Innolux | 5.0 | 480×272 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| DJ080PA-01C | Innolux | 8.0 | |
| EDTCB18QEF | TOSHIBA | 7.0 | 800×480 |
| LA080WV1-TD01 | LG Display | 8.0 | 800×480 |
| LB070WQ5-TD01 | LG Display | 7.0 | 480×240 |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ080Y5DR01 | SHARP | 8.0 | 800×480 |
