AUO B101UAN01.7 HW0A hifadhidata, vipimo, hisa, programu www.looklcd-mk.com
LookLCD LookLCD

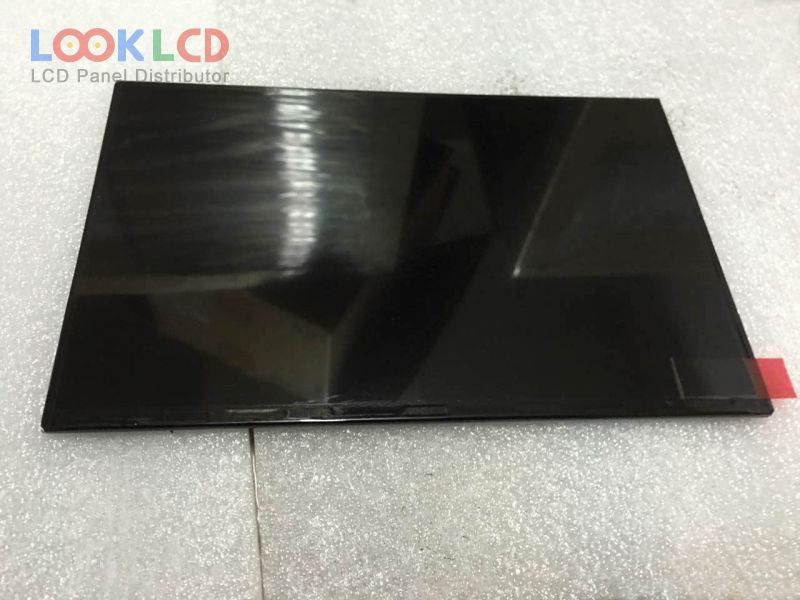

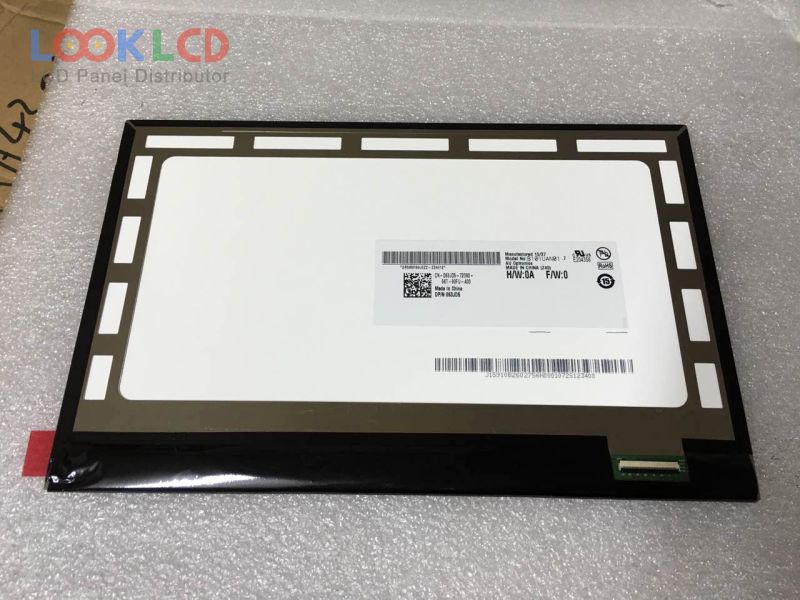

B101UAN01.7 HW0A

B101UAN01.7 HW0A
B101UAN01.7 HW0A
B101UAN01.7 HW0A
B101UAN01.7 HW0A thumb B101UAN01.7 HW0A thumb B101UAN01.7 HW0A thumb
Chapa
AUO
Ukubwa
10.1
Maombi
PAD
Azimio
1920×1200
Muundo
LCM
Mwangaza
400
CR
800:1
Rangi
16.7M
Mwangaza nyuma
WLED
Kiolesura
MIPI
In Stock
7648
Vipimo

Nambari ya Sehemu B101UAN01.7 HW0A
ChapaAUO
Ukubwa10.1
MaombiPAD
Azimio1920×1200
MuundoLCM
Mwangaza400
CR800:1
Rangi16.7M
Mwangaza nyumaWLED
KiolesuraMIPI
chapa ya paneliAUO
mfano wa paneliB101UAN01.7 HW0A
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli10.1 inch
azimio1920(RGB)×1200 , WUXGA
hali ya kuonyeshaAHVA, Normally Black, Transmissive
eneo la kazi216.81×135.5 mm
muhtasari227.72×147.8×5.35 mm
usoGlare (Haze 0%)
mwangaza400 cd/m² (Typ.)
uwiano wa utofautishaji800:1 (Typ.)
kuonyesha rangi16.7M (8-bit), CIE193150%
wakati wa majibu25 (Typ.)(Tr+Td)
angle ya kutazama85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taaWLEDEmbedded (LED Driver)

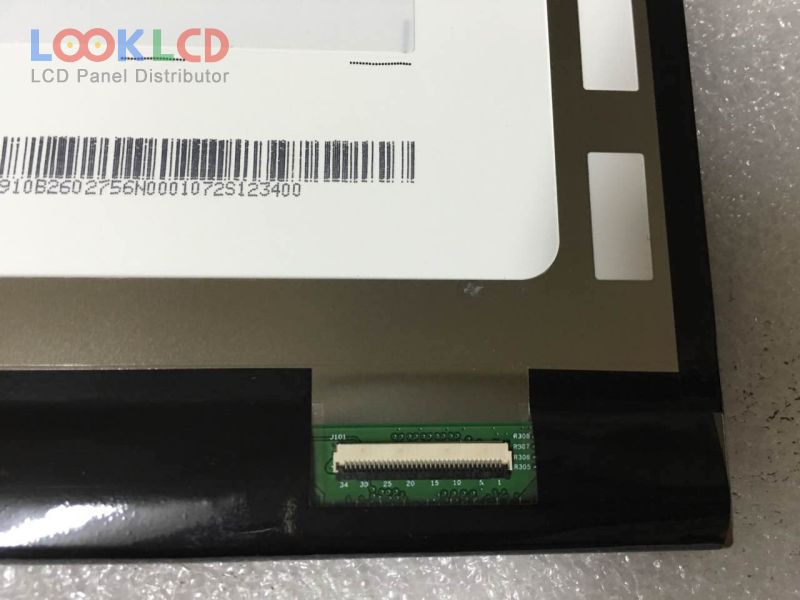

kiolesura cha isharaMIPI (4 data lanes), 34 pins
voltage ya pembejeo3.3V (Typ.)
maombiPAD
Mfano wa Familia
B101UAN01.1 AUO 10.1 1920×1200
B101UAN01.7 HW0A AUO 10.1 1920×1200
B101UAN01.7 HW1A AUO 10.1 1920×1200
B101UAN01.7 HW2A AUO 10.1 1920×1200
B101UAN01.9 AUO 10.1 1920×1200
B101UAN01.C AUO 10.1 1920×1200
B101UAN01.E AUO 10.1 1920×1200
B101UAN02.1 AUO 10.1 1920×1200
B101UAN07.0 AUO 10.1 1200×1920
B101UAN07.2 AUO 10.1 1200×1920
