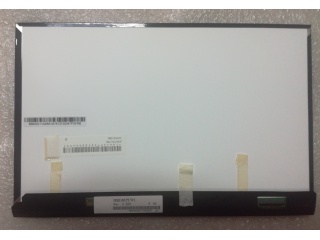

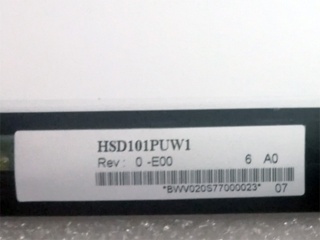

| Nambari ya Sehemu | HSD101PUW1-E00 |
| Chapa | HannStar |
| Ukubwa | 10.1 |
| Maombi | Pad & Tablet |
| Azimio | 1920×1200 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | MIPI |
| chapa | HannStar |
| ukubwa wa diagonal | 10.1 inch |
| muundo wa pixel | 1920(RGB)×1200 [WUXGA] 225PPI |
| eneo la kazi | 216.576(H)×135.36(V) mm |
| mwangaza | - |
| tazama mwelekeo | Symmetry |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10) |
| rangi ya msaada | 16.7M 50% NTSC |
| uzito | - |
| kiwango cha fremu | 60Hz |
| aina ya kiolesura | MIPI (4 data lanes) , 39 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| mfano | HSD101PUW1-E00 |
| aina | a-Si TFT-LCD , LCM |
| usanidi | RGB Vertical Stripe |
| muhtasari dim. | - |
| uwiano wa utofautishaji | 1000:1 (Typ.) (TM) |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| hali ya uendeshaji | IPS Pro, Normally Black, Transmissive |
| chanzo cha mwanga | WLED , 10K hours |
| iliyoundwa kwa ajili ya | Pad & Tablet |
| jopo la kugusa | Without |
