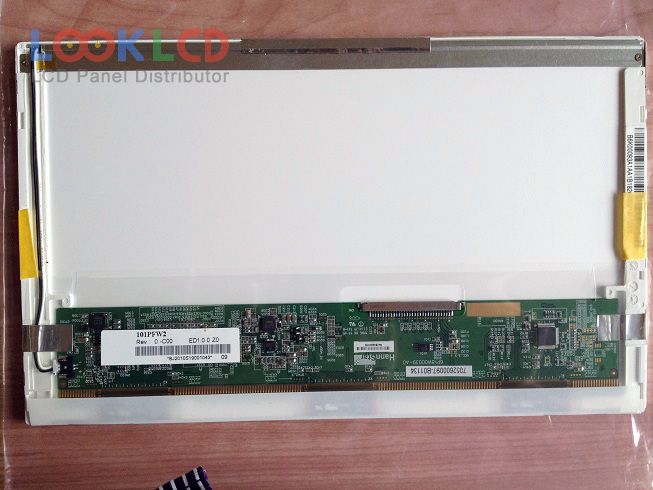

| Nambari ya Sehemu | HSD101PFW2-C00 |
| Chapa | HannStar |
| Ukubwa | 10.1 |
| Maombi | DPF |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | HannStar |
| mfano wa paneli | HSD101PFW2-C00 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 222.72×125.28 mm |
| muhtasari | 235×143×5.3 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 16 (Typ.)(Tr+Td) |
| angle ya kutazama | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 30 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | DPF |
| HSD101PFW1-B00 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| HSD101PUW1-A00 | HannStar | 10.1 | 1920×1200 |
| HSD101PWW1-A00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-A00-C40 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| AT080TN52 | Innolux | 8.0 | 800×600 |
| HSD070IDW1-A21 | HannStar | 7.0 | 800×480 |
| HSD084ISN1-A01 | HannStar | 8.4 | 800×600 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| HSD100IXN1-A00 | HannStar | 10.0 | 1024×768 |
| LD050WQ1-TD02 | LG Display | 5.0 | 480×272 |
| LQ085Y3DG12 | SHARP | 8.5 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| TM102WV-A02-03 | SANYO | 10.2 | 800×480 |
