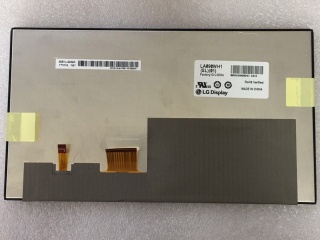

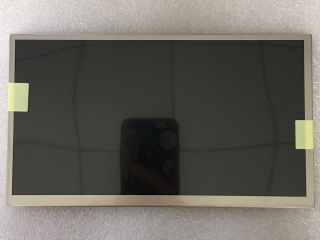

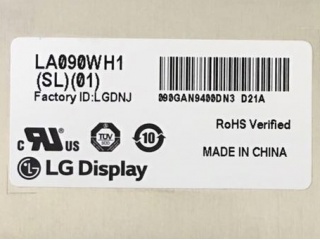

| Nambari ya Sehemu | LA090WH1-SL01 |
| Chapa | LG Display |
| Ukubwa | 9.0 |
| Maombi | Automotive Display |
| Azimio | 1280×720 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa | LG Display |
| mfano | LA090WH1-SL01 |
| ukubwa wa diagonal | 9.0 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 1280(RGB)×720 [WXGA] 164PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 200.448(H)×106.056(V) mm |
| muhtasari dim. | 213.2(H)×121.2(V) ×8.6(D) mm |
| eneo la bezel | 203.148(H)×108.756(V) mm |
| matibabu | Antiglare |
| mwangaza | 600 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) (TM) |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | 17/13 (Max.)(Tr/Td) |
| angle ya kutazama | 80/80/80/80 (Min.)(CR≥10) |
| hali ya uendeshaji | IPS, Normally Black, Transmissive |
| rangi ya msaada | 16.7M 65% NTSC |
| chanzo cha mwanga | WLED [6S3P] , 10K hours , W/O Driver |
| uzito | 219/224g (Typ./Max.) |
| iliyoundwa kwa ajili ya | Automotive Display |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | Without |
| aina ya kiolesura | LVDS (1 ch, 8-bit) , 60 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 95 °C |
