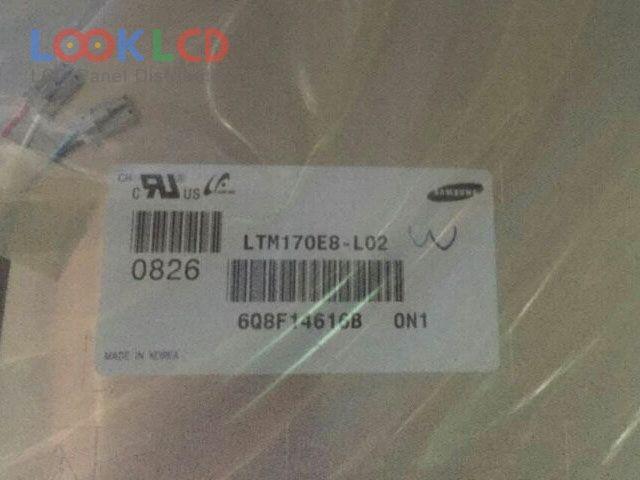

| Nambari ya Sehemu | LTM170E8-L02 |
| Chapa | Samsung |
| Ukubwa | 17.0 |
| Maombi | DMPC |
| Azimio | 1280×1024 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | SAMSUNG |
| mfano wa paneli | LTM170E8-L02 3 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 17.0 inch |
| azimio | 1280(RGB)×1024 , SXGA |
| hali ya kuonyesha | PVA, Normally Black, Transmissive |
| eneo la kazi | 337.92×270.336 mm |
| muhtasari | 354.9×290.3×13.3 mm |
| uso | Antiglare (Haze 44%), Hard coating (3H) |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193172% |
| wakati wa majibu | 15/10 (Typ.)(Tr/Td) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (2 ch, 8-bit), 30 pins |
| voltage ya pembejeo | 5.0V (Typ.) |
| maombi | DMPC |
| LTM170E6-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170E6-L04 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L01 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L21 | Samsung | 17.0 | 1280×1024 |
| LTM170EI-A01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L21 | Samsung | 17.0 | 1280×1024 |
| LTM170EX-L31 | Samsung | 17.0 | 1280×1024 |
| LTM170W1-L01 | Samsung | 17.0 | 1280×768 |
| LC215DTCA | PANDA | 21.5 | 1920×1080 |
| LM190E09-TLK1 | LG Display | 19.0 | 1280×1024 |
| LM230WF5-TLH1 | LG Display | 23.0 | 1920×1080 |
| LQ181E1LW31 | SHARP | 18.1 | 1280×1024 |
| M156B1-L01 | Innolux | 15.6 | 1366×768 |
| M201UN03 V0 | AUO | 20.1 | 1600×1200 |
| M220EW01 V2 | AUO | 22.0 | 1680×1050 |
| M230HGE-L20 | Innolux | 23.0 | 1920×1080 |
| M270HW01 V1 | AUO | 27.0 | 1920×1080 |
| MT185WHM-N10 | BOE | 18.5 | 1366×768 |
