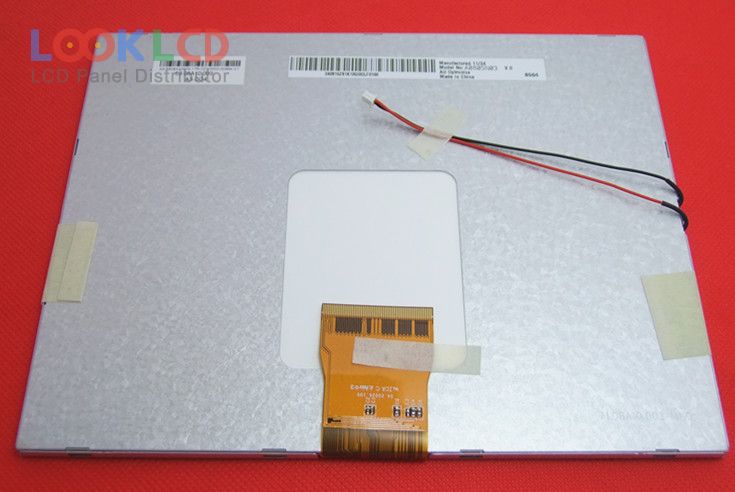

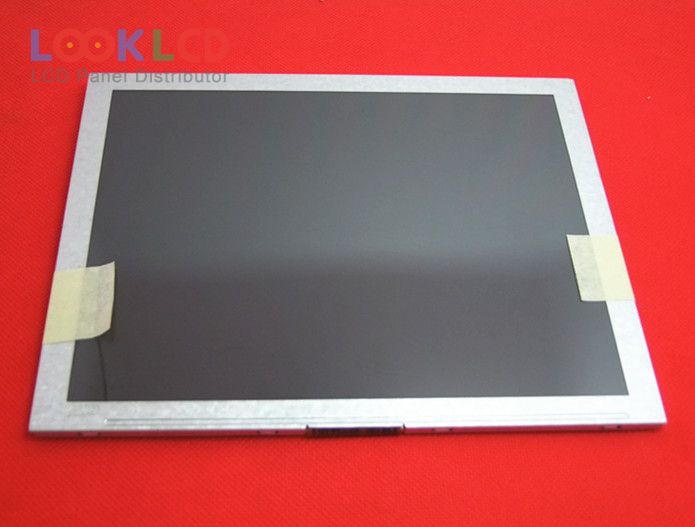

| Nambari ya Sehemu | A080SN03 V0 |
| Chapa | AUO |
| Ukubwa | 8.0 |
| Maombi | DPF |
| Azimio | 800×600 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 500:1 |
| Rangi | 16.2M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | AUO |
| mfano wa paneli | A080SN03 V0 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 800×600(RGB) , SVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 162×121.5 mm |
| muhtasari | 183×141×5.2 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 16.2M (6-bit + FRC), CIE193150% |
| wakati wa majibu | 12/18 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/60/65 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S6PWLEDWithout Driver |
| kiolesura cha ishara | TTL (1 ch, 8-bit) + SPI, 60 pins |
| voltage ya pembejeo | 3.3/5/-5/14/-14V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL) |
| maombi | DPF |
| A080SN01 V0 | AUO | 8.0 | 800×600 |
| A080SN01 V5 | AUO | 8.0 | 800×600 |
| A080SN01 V8 | AUO | 8.0 | 800×600 |
| A080SN02 V0 | AUO | 8.0 | 800×600 |
| A080SN03 V0 | AUO | 8.0 | 800×600 |
| A080SN03 V2 | AUO | 8.0 | 800×600 |
| A080SN03 V3 | AUO | 8.0 | 800×600 |
| AV080WSM-NW0 | BOE | 8.0 | 1024×600 |
| CLAA080LA0ACW | CPT | 8.0 | 800×480 |
| HJ080IA-01B | Innolux | 8.0 | 1024×768 |
| A070FW03 VB | AUO | 7.0 | 480×234 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT080TN03 V.7 | Innolux | 8.0 | 800×480 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD080IDW1-A00 | HannStar | 8.0 | 800×480 |
| HSD101PFW3-D00 | HannStar | 10.1 | 1024×600 |
| LB080WV3-B1 | LG Display | 8.0 | 800×480 |
| LB104S02-TD01 | LG Display | 10.4 | 800×600 |
| LW700AT9901 | Innolux | 7.0 | 800×480 |
| PW070XU3 | E Ink | 7.0 | 480×234 |
